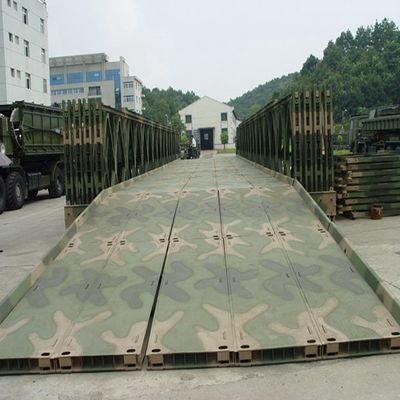

Compact Panel Prefabricated Bailey Bridge With 100 Design Load Hs25-44

Compact Panel Prefabricated Bailey Bridge With 100 Design Load Hs25-44
Compact Panel Prefabricated Bailey Bridge With 100 Design Load Hs25-44

Large Image :  Compact Panel Prefabricated Bailey Bridge With 100 Design Load Hs25-44

Product Details:
Place of Origin: CHINA
Brand Name: HARZONE
Model Number: CB100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Packaging Details: According to detailed order
Delivery Time: Negotiation
Payment Terms: According to detailed order
Detailed Product Description
Name: Compact Panel Bridge With 100 Design Load HS25-44 Brand Name: China Harzone
Material: Steel Bridge Color: According To Detailed Order
Width: 3.7m Length: 6m-60m
Load: HS25-44
High Light:

pre fabricated bailey bridge

,

100 bailey bridge

,

pre fabricated bailey truss bridge

Compact Panel Bridge with 100 Design Load HS25-44

Compact Panel Bridge with 100 Design Load HS25-44(also is named compact panel bridge or PSB) are manufactured by China Harzone Industry Corp., Ltd. 60ft bridge are Single-single construction, and the 90ft bridge are Double-Single Reinforced 2 (DSR2) construction according to the request made by the owner. We provide the all the components except the launching tools.



Panel of Compact Panel Bridge with 100 Design Load HS25-44

The panels of Compact Panel Bridge with 100 Design Load HS25-44 are monolithic unit welded in the factory and assembled by panel pin on the construction site, and the main structures are assembled according with the request of span and loading. The hole to hole distance of panel is 3048mm, and the height is 1448mm. the material of up and down chord is 10# slot steel and the middle is 8# slot steel.



End system of Compact Panel Bridge with 100 Design Load HS25-44

The bridge end of Compact Panel Bridge with 100 Design Load HS25-44 is composed of post end male, post end female, tie beam, bearing and bearing plate.



Launching equipment and tools  of Compact Panel Bridge with 100 Design Load HS25-44

The launching equipment and tools of  Compact Panel Bridge with 100 Design Load HS25-44 are made up of nose, roller, rock roller, joint, bolt and various spanners. The max loading of roller is 25t and the rock roller id 6t. The nose is netlike structure assembled by bridge components (not offered in this project).

The mechanical properties of Q345B

Yield point,σs MPa

Tensile strength

σb MPa

Extend rate

δs,

Work of concussion,Akv, (vertical), J

180obending test

d= dia.

a= thickness(dia.)

thickness(dia.,side length),mm +20℃ 0℃ -20℃ -40℃
≤16 >16~35 >35~50 >50~100 Not less than thickness(dia., mm)
Not less than ≤15 >16~100
345 325 295 275 470~630 21   34     d=2a d=3a



Deck system of Compact Panel Bridge with 100 Design Load HS25-44

The deck system of Compact Panel Bridge with 100 Design Load HS25-44 is made up of transom, deck and kerb. The transom connects with panel and deck by bolt. The material for transom is Type H steel and the main dimension is 200mm×400mm(side:200mm×13mm,middle:374mm×8mm, the deck is Q345Aδ4.5 anti-skid surface and the vertical steel is Q345Aδ5 type U steel.



Compact Panel Prefabricated Bailey Bridge With 100 Design Load Hs25-44 0



Compact Panel Prefabricated Bailey Bridge With 100 Design Load Hs25-44 1

This is China Harzone Industry Corp.,Ltd., our company was founded in 1967,and we are a member of China State Shipbuilding Corpration Limited(CSSC),which is the largest central state-owned shipbuilding and military enterprise in China. As the pioneer in the research and manufacturing of emergency and rescue equipment in China, Harzone is the first company from the emergency industry listed in the stock exchange.

China Harzone dedicates itself to the following fields:

Design and manufacturing of military bridges and emergency rescue equipment

Design,manufacturing and installation of various kinds of steel bridges and steel structures

Research and re-fitting of special-purpose vehicles and equipment

Engineering contracting

Import and Export trading business

Harzone products have been exported to more than 40 countries and regions around the world and own a good reputation from international client.Moreover,China Harzone has been listed in the state emergency purchasing system and also the largest qualified rescue machinery supplier of the United Nations Emergency Procurement.
