|Grade:||Q345B-Q460C||Place Of Origin:||Hubei,China|
|Brand Name:||China Harzone||Type:||Heavy|
|Application:||Steel Structure Bridge||Tolerance:||±1%|
|Processing Service:||Bending, Welding, Decoiling, Cutting, Punching||Certificate:||ISO9001:2015|
|Structure Type:||Steel Bridge||Installation:||Engineers Guidance|
4.2m Panel Bridge,
Single Lane Panel Bridge,
Single Lane Delta Bridge

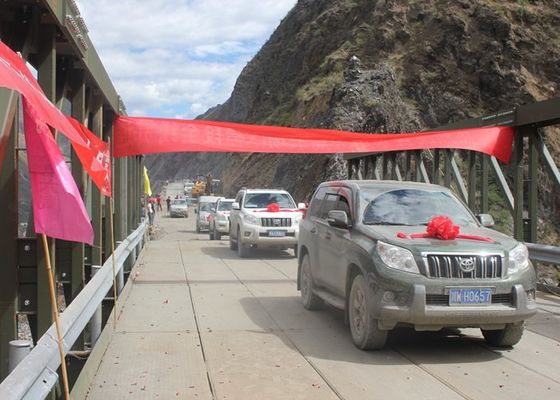

Single Lane 4.2m Panel Bridge Delta Bridge Product performance
Single Lane 4.2m Panel Bridge Delta Bridge is a temporary or semi-permanent large-span assembled highway steel bridge, which can be erected with a span of 36 ~ 81 meters. The bridge truss is 4.5 meters high and the unit section is 2.25 meters long. It can be used as a permanent bridge for concrete decks or as a semi-permanent bridge for steel decks.
Single Lane 4.2m Panel Bridge Delta Bridge Main technical data
(1) carriageway: 4.2m(single lane),7.35m(double lane)
(2) max. Span length: single lane 81m,double lane 72m
(3) max. Weight of unit component: 2378 kg
(4) transportation: the component dimension is suitable for truck and container
(5) erecting method: mainly by the machine and under the help of manpower
(6) crane requirement: 35t; or 10t×10m truck crane
(7) unit weight (steel deck): 2.63t /m (single lane),3.5t/m (double lane)
(8) connection type: high strength friction grip bolts or high strength bearing bolts
(9) material: Q420qc,Q355
1,Tail-made Welcome to submit your idea, we can turn your idea to products.
2,We own professional sales&after-sales services who can speak fluent English language.
3,For all your inquires about us or our products,we will reply you in details within 24 hours.
4,Discounts are offered based on order quantities.
