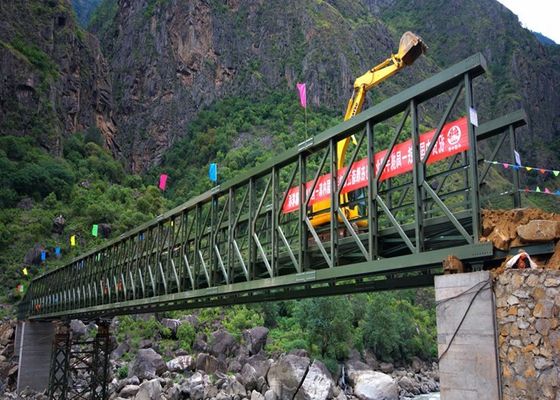

Truss Height 4.5m Steel Deck Bridge Delta Bridge

Truss Height 4.5m Steel Deck Bridge Delta Bridge
Truss Height 4.5m Steel Deck Bridge Delta Bridge

Large Image :  Truss Height 4.5m Steel Deck Bridge Delta Bridge

Product Details:
Place of Origin: Hubei,China
Brand Name: China Harzone
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Supply Ability: 50000 Ton/Tons per Year
Detailed Product Description
Standard: AiSi, ASTM, BS, GB Grade: Q345B-Q460C
Place Of Origin: Hubei,China Brand Name: China Harzone
Type: Heavy Application: Steel Structure Bridge
Tolerance: ±1% Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Certificate: ISO9001:2015 Color: Customers' Requirement
Structure Type: Steel Bridge Installation: Engineers Guidance
High Light:

Height 4.5m Steel Deck Bridge

,

Truss Steel Deck Bridge

,

4.5m Steel Deck Delta Bridge

Truss Height 4.5m Steel Deck Bridge Delta Bridge

Truss Height 4.5m Steel Deck Bridge Delta Bridge​ Product performance



Truss Height 4.5m Steel Deck Bridge Delta Bridge a temporary or semi-permanent large-span assembled highway steel bridge, which can be erected with a span of 36 ~ 81 meters.

Truss Height 4.5m Steel Deck Bridge Delta Bridge truss is 4.5 meters high and the unit section is 2.25 meters long. It can be used as a permanent bridge for concrete decks or as a semi-permanent bridge for steel decks.



Truss Height 4.5m Steel Deck Bridge Delta Bridge​ Product composition

Single Span 36-81m Steel Deck Bridge Delta Bridge is a through down bridge composed of upper chords, lower chords, triangular webs, beams, bridge panels and connectors. The connection between components is bolted. External or built sidewalks can be designed on both sides of the bridge.



Truss Height 4.5m Steel Deck Bridge Delta Bridge​ Main technical data


Signle Span 36-81m,Extended by 2.225m Each Section
Designed Load HS20-44,HA,HB Highway Grade1,tacked Load 60t
Truss Height 4.5m
Bridge Deck Steel or COncrete
Roadway Width(single lane) 4.2m
Roadway Width(Double lane) 7.35m(can meet different requirements)
Sidewalk Width 1m/1.2m/1.5m




Truss Height 4.5m Steel Deck Bridge Delta Bridge 0

Truss Height 4.5m Steel Deck Bridge Delta Bridge 1

China Harzone is one of the most professional “steel truss bridge” manufacturers all over the world and we always make our effort to provide our best service and products to our clients. So far, over 40 countries in Asia, Africa and Latin America have purchased our products, including Myanmar, Thailand, Peru, Ecuador, Sudan, Pakistan, Laos and so on.

Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

  1. Type of Bridge
  2. Span, Centre to Centre of Bearing of Supports (Bridge Length)
  3. Height of the Bridge, Vehicular, Pedestrian clearance
  4. Type of Deck
  5. Carriageway Width
  6. Sidewalk
  7. Design Vehicular Loading
  8. Seismic Loading
  9. Minimum Vertical Clearance for Navigational Traffic
  10. Maximum Deflection
  11. Ratio of Depth to Length of Span
  12. Galvanization and Finishing
  13. Environmental Condition
  14. Life service requirement ( for how many years the bridge is intended for use)
  15. Quotation terms (EXW or other)
  16. Better if there are site pictures can be provided.
