Loading Grade Highway-I Modular Steel Bridge Construction Delta Bridge

Loading Grade Highway-I Modular Steel Bridge Construction Delta Bridge
Loading Grade Highway-I Modular Steel Bridge Construction Delta Bridge

Large Image :  Loading Grade Highway-I Modular Steel Bridge Construction Delta Bridge

Product Details:
Place of Origin: Hubei,China
Brand Name: China Harzone
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Supply Ability: 50000 Ton/Tons per Year
Detailed Product Description
Standard: AiSi, ASTM, BS, GB Grade: Q345B-Q460C
Place Of Origin: Hubei,China Brand Name: China Harzone
Type: Heavy Application: Steel Structure Bridge
Tolerance: ±1% Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Certificate: ISO9001:2015 Color: Customers' Requirement
Structure Type: Steel Bridge Installation: Engineers Guidance
High Light:

Highway I Modular Steel Bridge

,

Q345B Modular Steel Bridge

,

Q345B Construction Delta Bridge

Loading Grade Highway-I Modular Bridge Construction Delta Bridge

Loading Grade Highway-I Modular Bridge Construction Delta Bridge Product performance

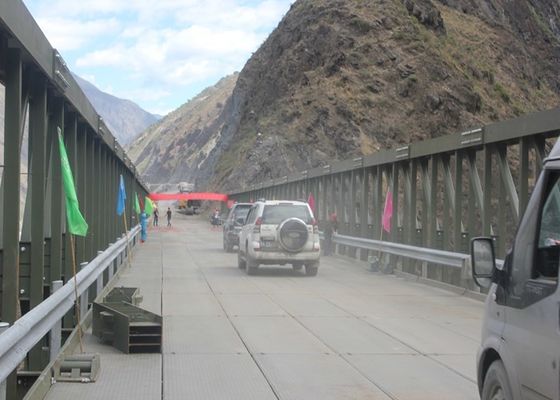

Loading Grade Highway-I Modular Bridge Construction Delta Bridge is a prefabricated highway steel bridge used to overcome obstacles such as large-span gullies and rivers.

Loading Grade Highway-I Modular Bridge Construction Delta Bridge can use Bailey Bridge components as the cantilever for erection.

Loading Grade Highway-I Modular Bridge Construction Delta Bridge can be used as a permanent bridge for the different grades of road construction.



Loading Grade Highway-I Modular Bridge Construction Delta Bridge Main technical data

loading grade HS25,HA +HB30, highway-I
carriageway 4.2m(single lane),7.35m(double lane)
max. Span length single lane 81m,double lane 72m
max. Weight of unit component 2378 kg
transportation the component dimension is suitable for truck and container
erecting method mainly by the machine and under the help of manpower
crane requirement 35t; or 10t×10m truck crane
unit weight (steel deck) 2.63t /m (single lane),3.5t/m (double lane)
connection type high strength friction grip bolts or high strength bearing bolts
material Q420qc,Q355



Loading Grade Highway-I Modular Bridge Construction Delta Bridge composition

Loading Grade Highway-I Modular Bridge Construction Delta Bridge is a through down bridge composed of upper chords, lower chords, triangular webs, beams, bridge panels and connectors. The connection between components is bolted. External or built sidewalks can be designed on both sides of the bridge.

Loading Grade Highway-I Modular Steel Bridge Construction Delta Bridge 0

Loading Grade Highway-I Modular Steel Bridge Construction Delta Bridge 1

China Harzone dedicates itself to the following fields:

Design and manufacturing of military bridges and emergency rescue equipment

Design,manufacturing and installation of various kinds of steel bridges and steel structures

Research and re-fitting of special-purpose vehicles and equipment

Engineering contracting

Import and Export trading business



Harzone products have been exported to more than 40 countries and regions around the world and own a good reputation from international client.Moreover,China Harzone has been listed in the state emergency purchasing system and also the largest qualified rescue machinery supplier of the United Nations Emergency Procurement.



Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

  1. Quotation terms (EXW or other)
  2. Type of Bridge
  3. Span, Centre to Centre of Bearing of Supports (Bridge Length)
  4. Height of the Bridge, Vehicular, Pedestrian clearance
  5. Type of Deck
  6. Carriageway Width
  7. Sidewalk
  8. Design Vehicular Loading
  9. Seismic Loading
  10. Minimum Vertical Clearance for Navigational Traffic
  11. Maximum Deflection
  12. Ratio of Depth to Length of Span
  13. Galvanization and Finishing
  14. Environmental Condition
  15. Life service requirement ( for how many years the bridge is intended for use)
  16. Better if there are site pictures can be provided.
