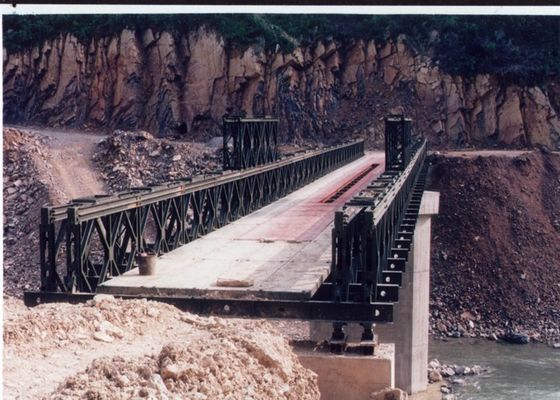

portable Temporary Steel Bridge Army Bailey Bridge modular design

portable Temporary Steel Bridge Army Bailey Bridge modular design
portable Temporary Steel Bridge Army Bailey Bridge modular design portable Temporary Steel Bridge Army Bailey Bridge modular design

Large Image :  portable Temporary Steel Bridge Army Bailey Bridge modular design

Product Details:
Place of Origin: Hubei,China
Brand Name: China Harzone
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiated
Supply Ability: 50000 Ton/Tons per Year
Detailed Product Description
Standard: AiSi, ASTM, BS, GB Grade: Q345B-Q460C
Place Of Origin: Hubei,China Brand Name: China Harzone
Type: Temporary Bridge Application: Steel Structure Bridge
Processing Service: Bending, Welding, Decoiling, Cutting, Punching Certificate: ISO9001:2015
Color: According To Requirement Structure Type: Steel Truss Bridge
Installation: Engineers Guidance Supply Ability: 40000 Ton/Tons Per Year
High Light:

Portable Temporary Steel Bridge

,

Bailey Temporary Steel Bridge

,

Modular Army Bailey Bridge

CB200 Designed Span 6-54m Temporary Steel Bridge Bailey Truss Bridge


CB200 Designed Span 6-54m Temporary Steel Bridge Bailey Truss Bridge Description:

CB200 Designed Span 6-54m Temporary Steel Bridge Bailey Truss Bridge is portable steel bridge ,It has been widely used in various fields, its most important feature is to achieve a variety of spans, bear carrying capacity, light and handy components, easy to dismantle and strong adaptability can be quickly completed with simple tools and manpower.


Standard Roadway 3.15m / 4.2m Bailey Truss Bridge Army Temporary Bridge surface protection can be paint or hot-dip galvanized.



CB200 Designed Span 6-54m Temporary Steel Bridge Bailey Truss Bridge adopts modular design, featuring a large span,short construction period,fast erection, multiple reuses of bridge components. It has excellent interchangeability and connection ferformance. The bridge structure can be designed according to the bridge span and load requirement,which can quickly construct a temporay or semi-permanent bridge.



CB200 Designed Span 6-54m Temporary Steel Bridge Bailey Truss Bridge Specifications:

Type  CB200
Designed Span 6-54m
Designed Load HL93,HA,HB,tracked load 50t
Panel Dimension 2.134*3.048m
Carriageway Width 4.2m/7.35m
Deck type steel deck/ wood deck



CB200 Designed Span 6-54m Temporary Steel Bridge Bailey Truss Bridge Advantage:


Possessing the features of simple structure,
great stability and long fatigue life
being capable of an alternative span, loading capacity
easy disassembling,
heavy loading capacity,


portable Temporary Steel Bridge Army Bailey Bridge modular design 0



portable Temporary Steel Bridge Army Bailey Bridge modular design 1portable Temporary Steel Bridge Army Bailey Bridge modular design 2



Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

  1. Type of Bridge
  2. Span, Centre to Centre of Bearing of Supports (Bridge Length)
  3. Height of the Bridge, Vehicular, Pedestrian clearance
  4. Type of Deck
  5. Carriageway Width
  6. Sidewalk
  7. Design Vehicular Loading
  8. Seismic Loading
  9. Minimum Vertical Clearance for Navigational Traffic
  10. Maximum Deflection
  11. Ratio of Depth to Length of Span
  12. Galvanization and Finishing
  13. Environmental Condition
  14. Life service requirement ( for how many years the bridge is intended for use)
  15. Quotation terms (EXW or other)
  16. Better if there are site pictures can be provided.
