Payment & Shipping Terms:
|Product Name:||Multi-Function Engineering Pontoon Floating Water Bridge||Usage:||Nconvenient Traffic|
|Type:||Floating Pontoon Bridge||Surface Protection:||Anti-corrosion Coatings|
|Feature:||Reusable||Single Pontoon:||6*2*1.2m&12*3*1.5m (L*W*H)|
Water Floating Pontoon Bridge,
Dock Floating Water Bridge,
Multi Function Floating Pontoon Bridge
Floating Dock Floating Water Bridge Temporary Floating Pontoon Bridge is a pontoon system with a variety of engineering functions composed of pontoon equipment and other supporting components. The main type of pontoon is the middle pontoon. In order to reduce the resistance of the water flow, the side pontoon, the end pontoon and the end side pontoon are also changed on the basis of the middle pontoon. The pontoons can be connected to each other to form floating bridges, wharf, ferries, and other pontoons. The auxiliary components used with the floating pontoon include springboards, columns, booms, cable stubs, winches, and outboard engine hangers. Through the application of these components, various uses of the floating pontoon can be realized. There are two main types:
|type 1||type 2|
Floating Dock Floating Water Bridge Temporary Floating Pontoon Bridge Introduction
A bridge with a floating body as the foot is called a floating bridge.A floating bridge generally consists of a river section, a shore section and a horizontal fixed system. According to the distribution form of the middle part of floating bridge, the bridge is divided into two types: elevated pontoon bridge and belt pontoon bridge. According to the characteristics of connection between floating bodies, it is divided into simple support system, hinge system and continuous system.
Floating Dock Floating Water Bridge Temporary Floating Pontoon Bridge Applications:
1.pontoon bridge:The multi-function engineering pontoon is mainly used to erect a pontoon bridge or a partially widened pontoon bridge. The system of the pontoon bridge can be a hinged or continuous system, and generally no simple support system is used. The pontoon connection method uses a springboard to connect the pontoon to the shore.
2.Floating dock:Floating dock is a temporary mobile dock that uses modular engineering floating pontoons to assemble on the water surface for material loading and unloading or personnel transfer. It has the characteristics of good mobility, rapid erection and strong adaptability.
3.Trestle bridge:Trestle bridge is a bridge passage from the shore to the water platform.

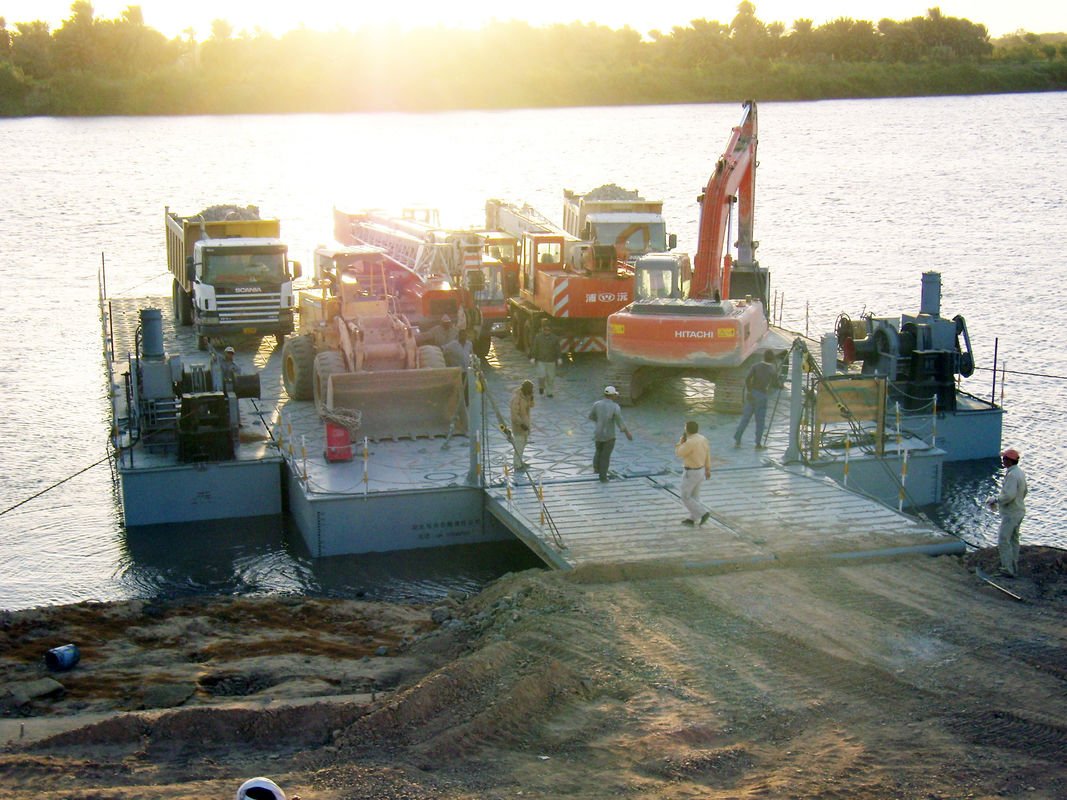

4.Ferry:The ferry is a ship with a combined multi-purpose engineering pontoon platform instead of a hull, and is equipped with an outboard engine as a power boat. It is mainly used to ferry engineering vehicles required for construction to pass the river barrier.
5.Floating crane:The multi-purpose engineering floating pontoon can provide a water platform for cranes to build on water.
Floating dock introduction
Floating dock is a temporary mobile dock that uses modular engineering floating pontoons to assemble on the water surface for material loading and unloading or personnel transfer. It has the characteristics of good mobility, rapid erection and strong adaptability.
Berthing floating dock application example
The berthing floating dock is a device, equipped with anti-collision device, mooring equipment, and entrance and exit passageway on the floating dock. Under the conditions of military logistics, rescue and disaster relief, the rapid transfer of materials is implemented. Under normal conditions, there is no terminal or to alleviate the shortage of berths at the terminal. Usually, temporary docks is needed to be set up to carry out short-distance transportation of materials.
The berthing floating dock is mainly composed of five kinds of pontoons: middle pontoon, side pontoon, end pontoon and springboard. It is divided into four parts: dock platform, approach bridge part, shore transition part and anchor part.
1,How about quality control of your company?
Manufacturing process for steel bailey bridge in China,who has engaging in this line for over 50 years with an International Quality System Certification of ISO 9001:2015 and as cooperation partner with the research institutions of the People’s Liberation Army. And our products have been exported to more than 40 countries and regions in Asia,Africa,Latin America and Oceania.
2,Are you a factory or a trade company?
We are a factory with 8 production lines and various machines to fabricate steel bridge parts,pontoon bridges,mechanized bridges and other products.Also, we have get the exporting license to devote ourselves into global market.
3,Where is your loading port?
Shanghai Port,Nanjing Port,Tianjin Port.
1,For all your inquires about us or our products,we will reply you in details within 24 hours.
2,We own professional sales&after-sales services who can speak fluent English language.
3,Tail-made Welcome to submit your idea, we can turn your idea to products.
4,Discounts are offered based on order quantities.
