Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Product Name: Multi-Function Engineering Pontoon Floating Water Bridge Usage: Nconvenient Traffic
Type: Floating Pontoon Bridge Surface Protection: Anti-corrosion Coatings
Feature: Reusable Single Pontoon: 6*2*1.2m&12*3*1.5m (L*W*H)
High Light:

Temporary Floating Bridge

,

8t Temporary Floating Bridge

,

Floating military pontoon bridge

8t Floating Crane Temporary Floating Pontoon Bridge​


8t Floating Crane Temporary Floating Pontoon Bridge​ Description:

8t Floating Crane Temporary Floating Pontoon Bridge is a pontoon system with a variety of engineering functions composed of pontoon equipment and other supporting components. The main type of pontoon is the middle pontoon. In order to reduce the resistance of the water flow, the side pontoon, the end pontoon and the end side pontoon are also changed on the basis of the middle pontoon. The pontoons can be connected to each other to form floating bridges, wharf, ferries, and other pontoons. The auxiliary components used with the floating pontoon include springboards, columns, booms, cable stubs, winches, and outboard engine hangers. Through the application of these components, various uses of the floating pontoon can be realized. There are two main types:

  type 1 type 2
length 6m 12m
width 2m 3m
hight 1.2m 1.5m


8t Floating Crane Temporary Floating Pontoon Bridge​ Introduction

A bridge with a floating body as the foot is called a floating bridge.A floating bridge generally consists of a river section, a shore section and a horizontal fixed system. According to the distribution form of the middle part of floating bridge, the bridge is divided into two types: elevated pontoon bridge and belt pontoon bridge. According to the characteristics of connection between floating bodies, it is divided into simple support system, hinge system and continuous system.


8t Floating Crane Temporary Floating Pontoon Bridge​ Applications:

1.pontoon bridge:The multi-function engineering pontoon is mainly used to erect a pontoon bridge or a partially widened pontoon bridge. The system of the pontoon bridge can be a hinged or continuous system, and generally no simple support system is used. The pontoon connection method uses a springboard to connect the pontoon to the shore.



2.Floating dock:Floating dock is a temporary mobile dock that uses modular engineering floating pontoons to assemble on the water surface for material loading and unloading or personnel transfer. It has the characteristics of good mobility, rapid erection and strong adaptability.



3.Trestle bridge:Trestle bridge is a bridge passage from the shore to the water platform.



4.Ferry:The ferry is a ship with a combined multi-purpose engineering pontoon platform instead of a hull, and is equipped with an outboard engine as a power boat. It is mainly used to ferry engineering vehicles required for construction to pass the river barrier.



5.Floating crane:The multi-purpose engineering floating pontoon can provide a water platform for cranes to build on water.

Introduction to floating crane

The multi-purpose engineering floating pontoon can provide a water platform for cranes to build on water. It can also carry goods and other engineering machinery on the platform to facilitate water construction and transportation. In addition, an outboard motor can be installed on the platform as a power unit to assist the construction platform in moving in the water.

Application example

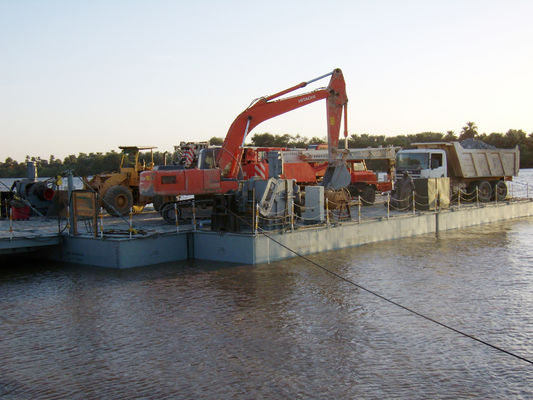

Taking an 8t floating crane platform as an example, 9 square pontoons and 6 reed pontoons are horizontally and longitudinally connected to a 20m long and 6m wide operating platform.
