| Material: | Steel,Aluminum/Steel/Stainless Steel | Product Name: | Mining Transporter |
|---|---|---|---|
| Function: | Mining Transporter | Certification: | CE |
| High Light: | semi tank trailers,tank semi trailer |
||
Features:

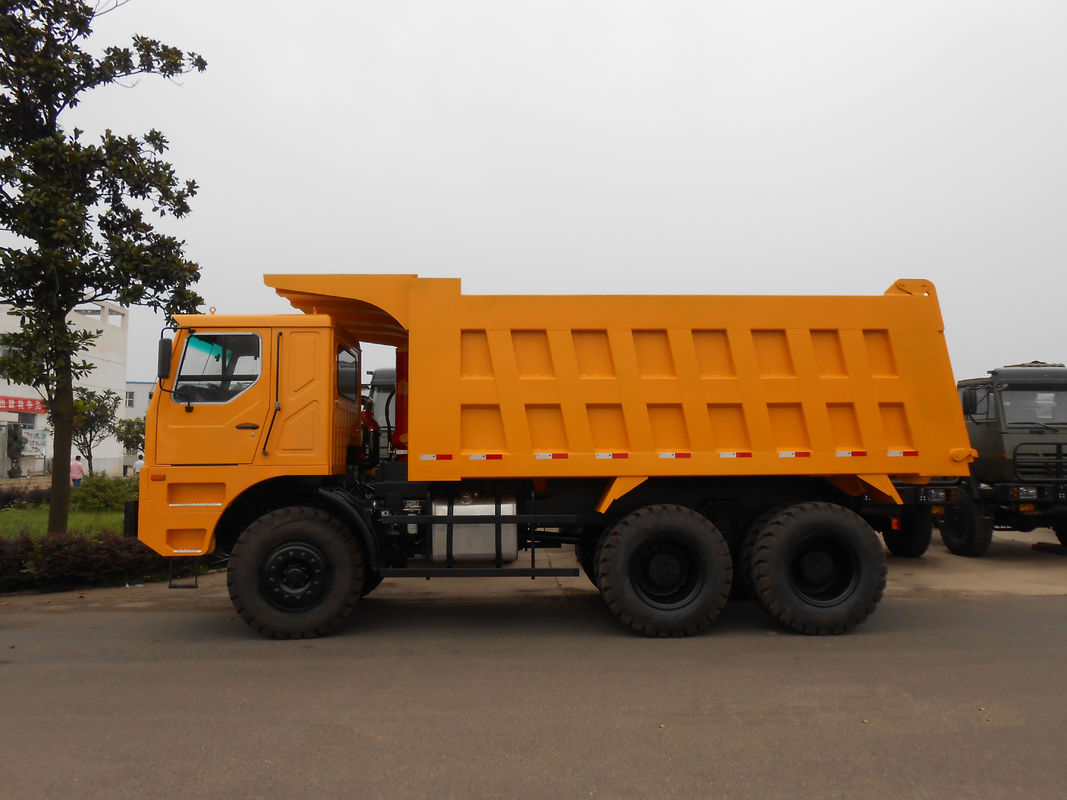

1. Designing professionally, secure and comfortable for driver, convenient to operate inside the cab, good vision for driver, dual enclosed door, good sealing and isolation, specialized front and rear rail and night rear light to ensure a good driving capacity.
2. Strong engine and good configuration. Strong engine: D12.380/340 horse power, to satisfy the special requirement for transporting the mining ores. With front axle for 19t, central axle for 35t and back axle for 35t, 14.00-24 (24, 28) engineering tire and using specially for mining transportation. The driving frame is high strong extra-wide mining frame.
|
Type |
HZK340 |
HZK380 |
|
|
Dimension
|
Exterior dimension (L×W×H) (mm) |
8060×3000×3450 |
8460×3000×3450 |
|
Inner dimension (L×W×H) (mm) |
5600×2800×1600 |
5600×2800×1600 |
|
|
Wheelbase (mm) |
3600+1500 |
3800+1500 |
|
|
Front overhang / Rear overhang (mm) |
1500 / 1560 |
||
|
Minimum ground clearance (mm) |
380 ( under the front axle ) |
||
|
Ramp angle / Angle of departure (°) |
33 / 36 |
||
|
Curb weight of vehicle ( kg ) / Maximum loading capacity ( kg ) |
24000 / 60000 |
||
|
Fastest speed ( km / h ) |
49 |
||
|
Engine
|
Type |
WD 12.380 / 340 |
|
|
Power ( kw /rpm ) |
279 / 22000 |
||
|
Maximum torque ( N.m / r / min ) |
1350 / 1100-1600 |
||
|
Fuel consumption ( g / kw / h ) |
198 |
||
|
Dutch |
430 diaphragm spring dutch A type with hydraulic control |
||
|
Transmission
|
Type |
9JS180 |
|
|
Speed ratio |
12.65, 8.38, 6.22, 4.57, 3.40, 2.46, 1.83, 1.34, 1.00 |
||
|
Drive axle / Front axle |
2T strengthen wide cast steel and dual tire drive axle / 12T strengthen cast steel front axle |
||
|
Tire |
14.00 - 24 ( 24.28 ) |
||
|
Fuel tank |
350L |
||
|
Minimum turning diameter |
|
21 |
22.5 |
