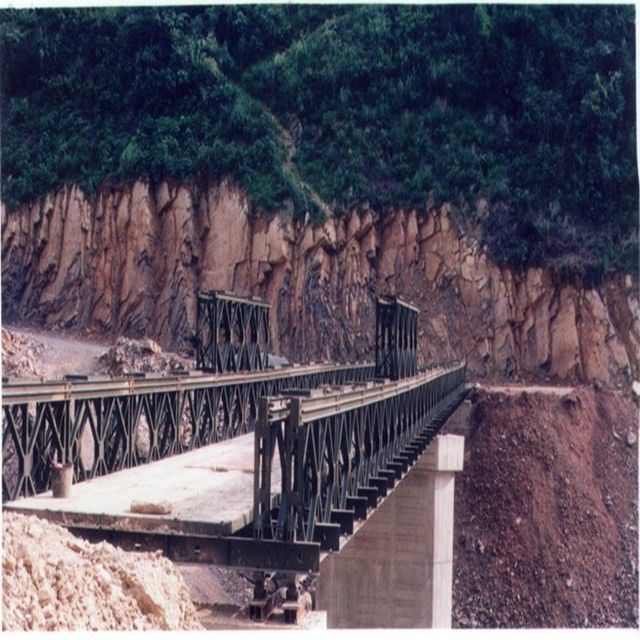

Emergency Truss Bailey Bridge Compact 100 Type

Emergency Truss Bailey Bridge Compact 100 Type
Emergency Truss Bailey Bridge Compact 100 Type

Large Image :  Emergency Truss Bailey Bridge Compact 100 Type

Product Details:
Place of Origin: China
Brand Name: Harzone
Model Number: CB100 TYPE, CB200 TYPE
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Product Name: Bailey Bridge Material: Steel
Type: CB100, CB200 Deck: Steel Deck / Timber Deck
Standard: ASTM, BS, GB Surface Protection: Hot-dip Galvanized
High Light:

emergency truss bailey bridge

,

compact 100 type bailey bridge

,

compact 100 type bailey truss bridge

Emergency Bridges Bailey Truss Bridge Compact 100 Bridge


Emergency Bridges Bailey Truss Bridge Compact 100 Bridge Description:

Emergency Bridges Bailey Truss Bridge Compact 100 Bridge is portable steel bridge,which have been widely used in various fields, its most important feature is to achieve a variety of spans, bear carrying capacity, light and handy components, easy to dismantle and strong adaptability can be quickly completed with simple tools and manpower.


Emergency Bridges Bailey Truss Bridge Compact 100 Bridge surface protection can be paint or hot-dip galvanized.



Emergency Bridges Bailey Truss Bridge Compact 100 Bridge Specifications:



Bridge type: CB100, CB200
Single lane: Standard roadway: 3.15m / 4.2m Single lane: 30ft-200ft
Double lane: Standard roadway:7.35m Double lane:30ft-180ft
Load: design according to different requirements Deck: steel deck/timber deck


Emergency Bridges Bailey Truss Bridge Compact 100 Bridge Advantage:



Easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
Possessing the features of simple structure,
convenient transport, speedy erection

Emergency Bridges Bailey Truss Bridge Compact 100 Bridge Features:


1. Steel bridge generally USES factory, site splicing, the construction period is short, processing convenient and not affected by seasonal effect.
2. Steel bridge is suitable for industrialized manufacture and very convenient to transport.
3. Steel bridge is easy to repair and replace, long lifetime, material can be recycled.
4. High strength and big stiffness , relative to the concrete bridge can be reduced trabecular high and self-respect
5. Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption


Mixture form to erect all kinds of
Temporary Bridges, Emergency Bridges and Fixed Bridges.
Using the bridge equipment, the suspension bridges of varied span can be erected.
The bridge has the advantages of few components, light weight and low cost.

Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements are small enough to be carried in , and the bridge is strong enough to carry . It is considered a great example of military engineering.

Bolt-connected components use the orienting sleeve- fixing method to increase accuracy of connections. Shear is created in orienting sleeves and tension is developed in bolts, which increase the usage life of the bolts and ensure the safety of panel bridges. Wind resistant brace is made to be composite type and is connected to transom/girders to improve overall stability of panel bridges.





Emergency Truss Bailey Bridge Compact 100 Type 0

Emergency Truss Bailey Bridge Compact 100 Type 1



FAQ

1,How about quality control of your company?

Manufacturing process for steel bailey bridge in China,who has engaging in this line for over 50 years with an International Quality System Certification of ISO 9001:2015 and as cooperation partner with the research institutions of the People’s Liberation Army. And our products have been exported to more than 40 countries and regions in Asia,Africa,Latin America and Oceania.



2,Are you a factory or a trade company?

We are a factory with 8 production lines and various machines to fabricate steel bridge parts,pontoon bridges,mechanized bridges and other products.Also, we have get the exporting license to devote ourselves into global market.



3,Where is your loading port?

Shanghai Port,Nanjing Port,Tianjin Port.
