Designed Span 6-60m Modular Steel Bridge Bailey Parts

Designed Span 6-60m Modular Steel Bridge Bailey Parts
Designed Span 6-60m Modular Steel Bridge Bailey Parts
video play

Large Image :  Designed Span 6-60m Modular Steel Bridge Bailey Parts

Product Details:
Place of Origin: Hubei,China
Brand Name: China Harzone
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiated
Supply Ability: 50000 Ton/Tons per Year
Detailed Product Description
Grade: Q345 Place Of Origin: CHINA HUBEI WUHAN
Brand Name: Harzone Type: Steel Girder Bridges
Application: Emergency Bridges Processing Service: Bending, Cutting, Welding, Decoiling,Punching
Certificate: ISO9001 Color: Any Color You Want
Structure Type: Steel Truss Bridge Installation: Engineers Guidance
High Light:

span 6m modular steel bridge

,

bailey modular steel bridge

,

span 60m bailey bridge

Designed Span 6-60m Bailey Bridge Parts Modular Steel Bridge



Designed Span 6-60m Bailey Bridge Parts Modular Steel Bridge​ Description:

Designed Span 6-60m Bailey Bridge Parts Modular Steel Bridge is convenient steel bridge , Designed Span 6-60m Bailey Bridge Parts Modular Steel Bridge maximum important feature is to reach a range of spans, bear carrying capacity, bright and handy components, easygoing to demolish and strong adaptability can be quickly accomplished with humble tools and manpower.



Designed Span 6-60m Bailey Bridge Parts Modular Steel Bridge adopts prefabricated design, featuring a great span, small construction period, fast erection, many reuses of bridge components. Designed Span 6-60m Bailey Bridge Parts Modular Steel Bridgehas outstanding interchangeability and connection performance. The bridge structure can be designed according to the bridge span and load requirement, which can quickly construct a temporary or semi-permanent bridge, and the bridge surface protection can be paint or hot-dip galvanized.





Designed Span 6-60m Bailey Bridge Parts Modular Steel Bridge​ Specifications:

Type CB100
Panel Dimension 1.448*3.048m
Carriageway Width 4.2m/7.35m
Deck type steel deck/ wood deck
Designed Span 6-60m
Designed Load HS25-44,Axle Load 20t,tracked load 50t



Designed Span 6-60m Bailey Bridge Parts Modular Steel Bridge contains of girder, deck, frame connecting structure, bridge end structure and gateway structure. The girder is combined of panel, panel pin (include safety circlip) and chord reinforcement. The deck is combined of transom, bridge plate and kerb. The frame structure is combined of raker, bracing frame, vertical frame, sway brace and vertical component. The bridge end section is combined of end post, lower bearing and frame plate. The gateway structure is combined of ramp, ramp bearing and end plate.

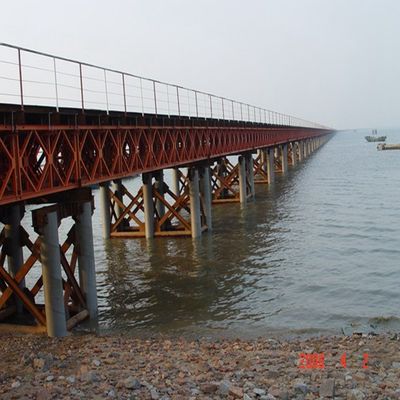

Designed Span 6-60m Modular Steel Bridge Bailey Parts 0

Designed Span 6-60m Modular Steel Bridge Bailey Parts 1



China Harzone is one of the most professional “steel truss bridge” manufacturers all over the world and we always make our effort to provide our best service and products to our clients. So far, over 40 countries in Asia, Africa and Latin America have purchased our products, including Myanmar, Thailand, Peru, Ecuador, Sudan, Pakistan, Laos and so on.



Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

  1. Type of Bridge
  2. Span, Centre to Centre of Bearing of Supports (Bridge Length)
  3. Height of the Bridge, Vehicular, Pedestrian clearance
  4. Type of Deck
  5. Carriageway Width
  6. Sidewalk
  7. Design Vehicular Loading
  8. Seismic Loading
  9. Minimum Vertical Clearance for Navigational Traffic
  10. Maximum Deflection
  11. Ratio of Depth to Length of Span
  12. Galvanization and Finishing
  13. Environmental Condition
  14. Life service requirement ( for how many years the bridge is intended for use)
  15. Quotation terms (EXW or other)
  16. Better if there are site pictures can be provided.

Please feel free to contact with us if you have any questions.
