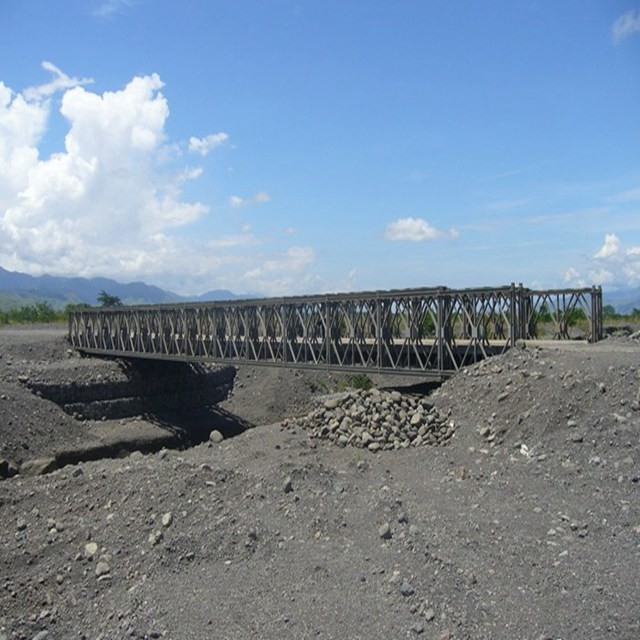

Length 50m Compact Panel Astm Steel Truss Arch Bridge

Length 50m Compact Panel Astm Steel Truss Arch Bridge
Length 50m Compact Panel Astm Steel Truss Arch Bridge

Large Image :  Length 50m Compact Panel Astm Steel Truss Arch Bridge

Product Details:
Place of Origin: China
Brand Name: Harzone
Model Number: CB200
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Packaging Details: According to detailed order
Delivery Time: Negotiation
Payment Terms: According to detailed order
Detailed Product Description
Product Name: Bailey Bridge Material: Steel
Type: CB100, CB200 Carriageway Width: 4.2m In Single Lane, 7.35m In Double Lane
Standard: ASTM, BS, GB Surface Protection: Hot-dip Galvanized
High Light:

astm steel truss arch bridge

,

length 50m steel truss arch bridge

,

compact bailey bridge

Bridge Length 50m Compact Panel Bridge Arch Bridge



Introduction of Bridge Length 50m Compact Panel Bridge Arch Bridge:


Bridge Length 50m Compact Panel Bridge Arch Bridge is standard bridge equipment, adopted extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling. While having the advantage of heavy loading capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds and usage of temporary bridges, emergency bridges and fixed bridges. The bridge has the advantages of few components, light weight and low cost.


Bridge Length 50m Compact Panel Bridge Arch Bridge:
●The panel is the basic components of the bailey bridge, with a dimension of 3.048*2.134m. The length of the bridge changes by 3.048m as a segment to construct various span and various loading bridges.
●The carriageway width is 4.2m in single lane and 7.35m in double lane.
●The surface disposal is painting or galvanized according to the requirement.


Advantage of Bridge Length 50m Compact Panel Bridge Arch Bridge:

Possessing the features of humble structure,
easygoing disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity

convenient transport, quick erection

Features of Bridge Length 50m Compact Panel Bridge Arch Bridge:

1. Steel bridge is suitable for industrialized manufacture and very convenient to transport.

2.Great strength and big stiffness , relative to the concrete bridge can be reduced trabecular high and self-confidence
3. Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption
4. Steel bridge usually USES factory, site splicing, the construction period is short, processing convenient and not affected by seasonal effect.
5. Steel bridge is easy to repair and replace, long-lasting lifetime, material can be recycled.

Application of Bridge Length 50m Compact Panel Bridge Arch Bridge:

Beam bridge, arch bridge, rigid frame bridge, cable-stayed bridge, suspension bridge. passenger foot-bridge

Mixture form to erect all kinds of

Provisional Bridges, Emergency Bridges and Fixed Bridges.
Using the bridge equipment, the suspension bridges of varied span can be erected.
The bridge has the advantages of few components, light weight and low cost.
Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements are small enough to be carried in , and the bridge is strong enough to carry . It is considered a great example of military engineering.
...

Length 50m Compact Panel Astm Steel Truss Arch Bridge 0

Length 50m Compact Panel Astm Steel Truss Arch Bridge 1



China Harzone is one of the most professional “steel truss bridge” manufacturers all over the world and we always make our effort to provide our best service and products to our clients. So far, over 40 countries in Asia, Africa and Latin America have purchased our products, including Myanmar, Thailand, Peru, Ecuador, Sudan, Pakistan, Laos and so on.



Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

  1. Type of Bridge
  2. Span, Centre to Centre of Bearing of Supports (Bridge Length)
  3. Height of the Bridge, Vehicular, Pedestrian clearance
  4. Type of Deck
  5. Carriageway Width
  6. Sidewalk
  7. Design Vehicular Loading
  8. Seismic Loading
  9. Minimum Vertical Clearance for Navigational Traffic
  10. Maximum Deflection
  11. Ratio of Depth to Length of Span
  12. Galvanization and Finishing
  13. Environmental Condition
  14. Life service requirement ( for how many years the bridge is intended for use)
  15. Quotation terms (EXW or other)
  16. Better if there are site pictures can be provided.

Please feel free to contact with us if you have any questions.
