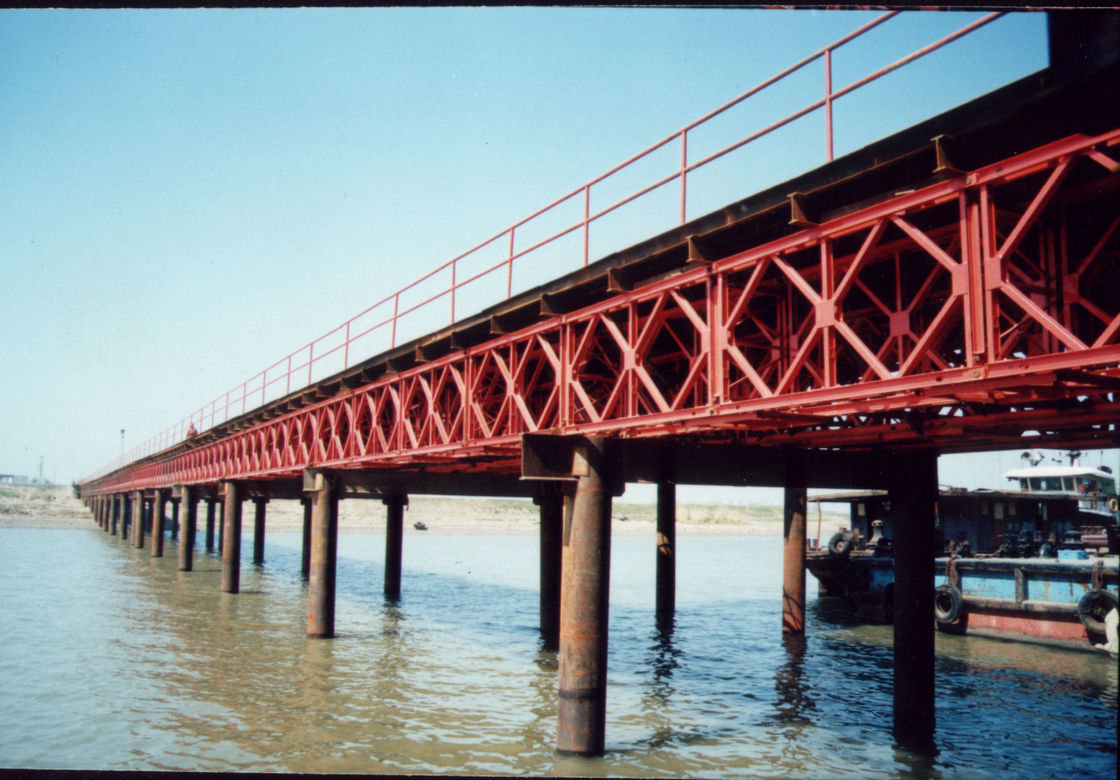

Highway Grade Heavy Duty Modular Steel Bridge For Concrete Decks

Highway Grade Heavy Duty Modular Steel Bridge For Concrete Decks
Highway Grade Heavy Duty Modular Steel Bridge For Concrete Decks

Large Image :  Highway Grade Heavy Duty Modular Steel Bridge For Concrete Decks

Product Details:
Place of Origin: Hubei,China
Brand Name: China Harzone
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Supply Ability: 50000 Ton/Tons per Year
Detailed Product Description
Name: Modular Steel Bridge Place Of Origin: Hubei,China
Brand Name: China Harzone Application: Steel Structure Bridge
Tolerance: ±1% Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Certificate: ISO9001:2015 Color: Customers' Requirement
Structure Type: Steel Bridge Installation: Engineers Guidance
High Light:

Heavy Duty Modular Steel Bridge

,

Highway Modular Steel Bridge

,

Concrete Decks Modular Steel Bridge

Highway Grade Heavy Duty Modular Steel Bridge For Concrete Decks

Modular steel bridges are designed to be simple. They usually consist of a simply supported structural system in which the bridge is only supported by a pier or abutment at each end. These types of bridges are found all over, in a variety of applications.



Modular Steel Bridge Main technical data



Designed Span Signle Span 36-81m,Extended by 2.225m Each Section
Designed Load HS20-44,HA,HB Highway Grade1,tacked Load 60t
Truss Height 4.5m
Bridge Deck Steel or COncrete
Roadway Width(single lane) 4.2m
Roadway Width(Double lane) 7.35m(can meet different requirements)
Sidewalk Width 1m/1.2m/1.5m



Modular Steel Bridge composition

Designed Load HS20-44 Steel Deck Bridge Delta Bridge is a through down bridge composed of upper chords, lower chords, triangular webs, beams, bridge panels and connectors. The connection between components is bolted. External or built sidewalks can be designed on both sides of the bridge.

Highway Grade Heavy Duty Modular Steel Bridge For Concrete Decks 0

Highway Grade Heavy Duty Modular Steel Bridge For Concrete Decks 1
