Product Details:
Payment & Shipping Terms:
|
| Standard: | AiSi, ASTM, BS, GB | Name: | Temporary Modular Bridge |
|---|---|---|---|
| Type: | Temporary Bridge | Application: | Steel Structure Bridge |
| Processing Service: | Bending, Welding, Decoiling, Cutting, Punching | Certificate: | ISO9001:2015 |
| Structure Type: | Steel Truss Bridge | Supply Ability: | 40000 Ton/Tons Per Year |
| High Light: | axle load 20t temporary modular bridge,semi permanent temporary modular bridge,aisi standard compact bridge |
||

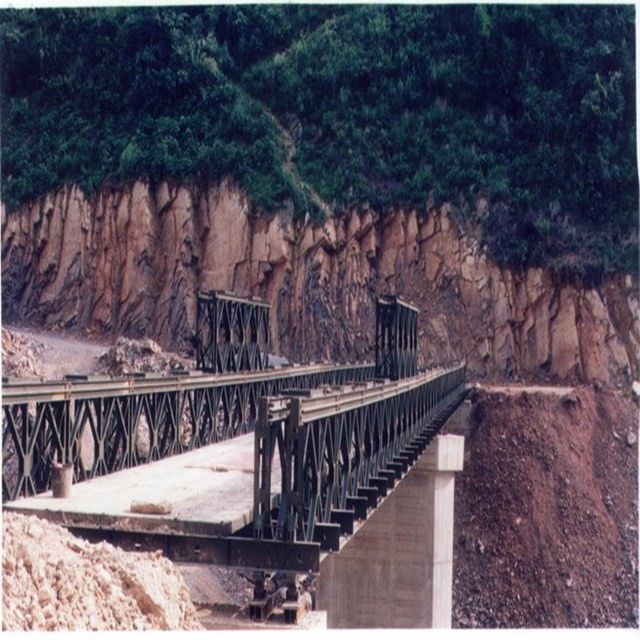

Axle Load 20t Semi-Permanent Compact Panel Bridge
Axle Load 20t Semi-Permanent Compact Panel Bridge Description:
Axle Load 20t Semi-Permanent Compact Panel Bridge consists of girder, deck, frame connecting structure, bridge end structure and gateway structure. Axle Load 20t Semi-Permanent Compact Panel Bridge girder is composed of panel, panel pin (include safety circlip) and chord reinforcement. Axle Load 20t Semi-Permanent Compact Panel Bridge deck is composed of transom, bridge plate and kerb. The frame structure is composed of raker, bracing frame, vertical frame, sway brace and vertical component. The bridge end section is composed of end post, lower bearing and frame plate. The gateway structure is composed of ramp, ramp bearing and end plate.
Axle Load 20t Semi-Permanent Compact Panel Bridge adopts modular design, featuring a large span,short construction period,fast erection, multiple reuses of bridge components. Axle Load 20t Semi-Permanent Compact Panel Bridge has excellent interchangeability and connection ferformance.6-60m Compact Panel Bridge structure can be designed according to the bridge span and load requirement,which can quickly construct a temporay or semi-permanent bridge.
Axle Load 20t Semi-Permanent Compact Panel Bridge Specifications:
| Type | CB100 |
| Designed Span | 6-60m |
| Designed Load | HS25-44,Axle Load 20t,tracked load 50t |
| Panel Dimension | 1.448*3.048m |
| Carriageway Width | 4.2m/7.35m |
| Deck type | steel deck/ wood deck |
FAQ
1,How about quality control of your company?
Manufacturing process for steel bailey bridge in China,who has engaging in this line for over 50 years with an International Quality System Certification of ISO 9001:2015 and as cooperation partner with the research institutions of the People’s Liberation Army. And our products have been exported to more than 40 countries and regions in Asia,Africa,Latin America and Oceania.
2,Are you a factory or a trade company?
We are a factory with 8 production lines and various machines to fabricate steel bridge parts,pontoon bridges,mechanized bridges and other products.Also, we have get the exporting license to devote ourselves into global market.
3,Where is your loading port?
Shanghai Port,Nanjing Port,Tianjin Port.
Contact Person: Ms. Sun Ruyu
Tel: 0086-13871570243
Fax: 86-10-88395884
