Name: | Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge | Brand Name: | China Harzone |
---|---|---|---|
Material: | Iron Bridge | Color: | According To Detailed Order |
Width: | 3.2m | Length: | 50 |
Load: | HS 25-44 | ||
High Light: | Civil Bailey Bridge,50m Bailey Bridge,Bailey Steel Truss Bridge |

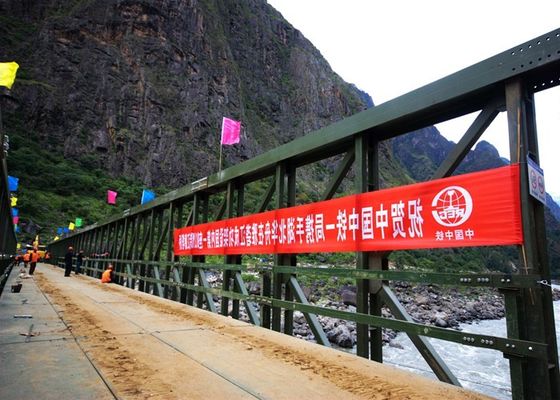

Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge(also is named compact panel bridge or PSB) are manufactured by China Harzone Industry Corp., Ltd. 60ft bridge are Single-single construction, and the 90ft bridge are Double-Single Reinforced 2 (DSR2) construction according to the request made by the owner. We provide the all the components except the launching tools.
Joint systems of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge
The joint system of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge is composed by Raker (for SS construction), bracing frame, vertical frame, vertical brace, sway brace and relative bolt.
Panel of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge
The panels of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge are monolithic unit welded in the factory and assembled by panel pin on the construction site, and the main structures are assembled according with the request of span and loading. The hole to hole distance of panel is 3048mm, and the height is 1448mm. the material of up and down chord is 10# slot steel and the middle is 8# slot steel.
End system of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge
The bridge end of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge is composed of post end male, post end female, tie beam, bearing and bearing plate.
Launching equipment and tools of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge
The launching equipment and tools of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge are made up of nose, roller, rock roller, joint, bolt and various spanners. The max loading of roller is 25t and the rock roller id 6t. The nose is netlike structure assembled by bridge components (not offered in this project).
The mechanical properties of Q345B
Yield point,σs MPa |
Tensile strength σb MPa |
Extend rate δs, |
Work of concussion,Akv, (vertical), J |
180obending test d= dia. a= thickness(dia.) |
|||||||||
thickness(dia.,side length),mm | +20℃ | 0℃ | -20℃ | -40℃ | |||||||||
≤16 | >16~35 | >35~50 | >50~100 | Not less than | thickness(dia., mm) | ||||||||
Not less than | ≤15 | >16~100 | |||||||||||
345 | 325 | 295 | 275 | 470~630 | 21 | 34 | d=2a | d=3a |
Deck system of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge
The deck system of Civil Bridge 50m CB100 Compact Panel Bridge Bailey Bridge is made up of transom, deck and kerb. The transom connects with panel and deck by bolt. The material for transom is Type H steel and the main dimension is 200mm×400mm(side:200mm×13mm,middle:374mm×8mm, the deck is Q345Aδ4.5 anti-skid surface and the vertical steel is Q345Aδ5 type U steel.
Harzone Industry was built in 1967, one of the subsidiary units of China State Shipbuilding Corporation Limited(CSSC), a state-owned and protected military company. Over the past four decades, the leaders of both the Party and nation have been caring for the growth of the company. Chairman Mao underlined the documents for the factory establishment. Later, ZhangAiping., one General, and Chen Shiju, one commander, inscribed name for the company. In 2008, Mr. He Guoqiang, Standing Committee of Political Bureau of CPC Central Committee, Secrrtary of the Discipline Inspection Commission of CPC Central Committee had paid a visit to the company and inspected the workshop and saw the erection of the mechanized bridge, who also encouraged the company to develope well.
