| Name: | Deaign Load HL-93 Steel Deck Compact Panel Bridge | Brand Name: | China Harzone |
|---|---|---|---|
| Material: | Iron Bridge | Color: | According To Detailed Order |
| Width: | 7.35m,4.2m | Length: | 6-54m |
| Load: | HL-93,HA | ||
| High Light: | compact 93 panel steel bailey bridge,compact panel military bailey bridge,steel deck military bailey bridge |
||

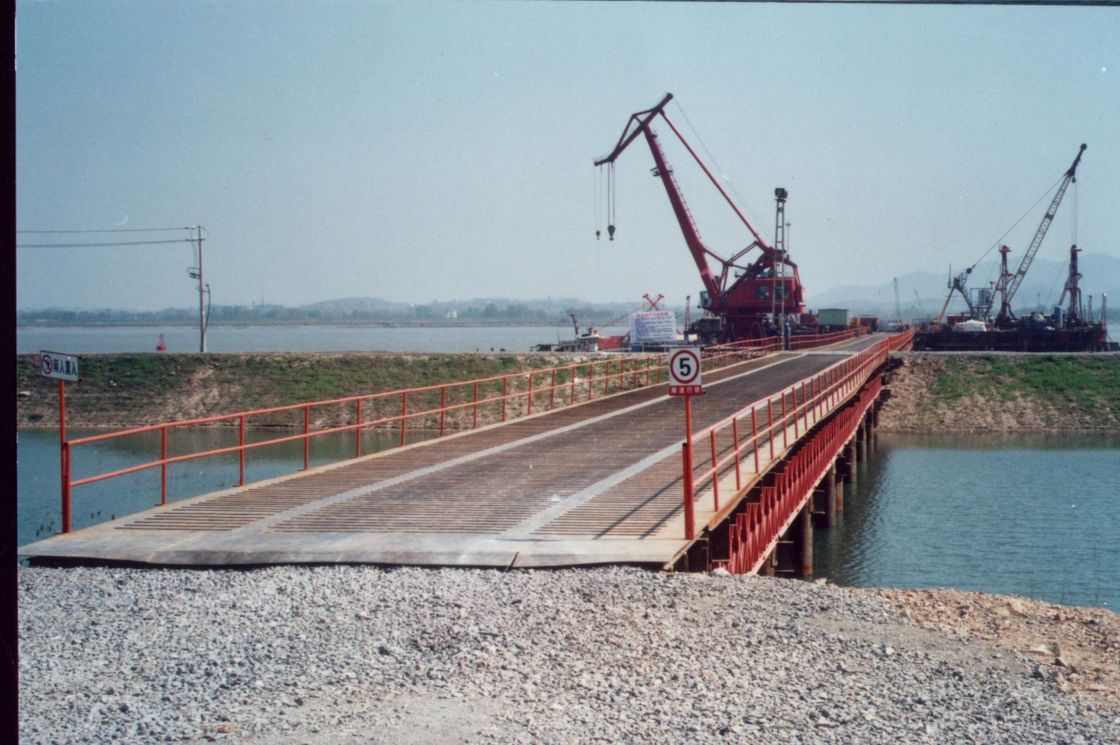

Deaign Load HL-93 Steel Deck Compact Panel Bridge(also is named compact panel bridge or PSB) are manufactured by China Harzone Industry Corp., Ltd. 60ft bridge are Single-single construction, and the 90ft bridge are Double-Single Reinforced 2 (DSR2) construction according to the request made by the owner. We provide the all the components except the launching tools.
Joint systems of Deaign Load HL-93 Steel Deck Compact Panel Bridge
The joint system of Deaign Load HL-93 Steel Deck Compact Panel Bridge is composed by Raker (for SS construction), bracing frame, vertical frame, vertical brace, sway brace and relative bolt.
End system of Deaign Load HL-93 Steel Deck Compact Panel Bridge
The bridge end of Deaign Load HL-93 Steel Deck Compact Panel Bridge is composed of post end male, post end female, tie beam, bearing and bearing plate.
Launching equipment and tools of Deaign Load HL-93 Steel Deck Compact Panel Bridge
The launching equipment and tools of Deaign Load HL-93 Steel Deck Compact Panel Bridge are made up of nose, roller, rock roller, joint, bolt and various spanners. The max loading of roller is 25t and the rock roller id 6t. The nose is netlike structure assembled by bridge components (not offered in this project).
The mechanical properties of Q345B
| Yield point,σs MPa |
Tensile strength σb MPa |
Extend rate δs, |
Work of concussion,Akv, (vertical), J |
180obending test d= dia. a= thickness(dia.) |
|||||||||
| thickness(dia.,side length),mm | +20℃ | 0℃ | -20℃ | -40℃ | |||||||||
| ≤16 | ＞16~35 | ＞35~50 | ＞50~100 | Not less than | thickness(dia., mm) | ||||||||
| Not less than | ≤15 | ＞16~100 | |||||||||||
| 345 | 325 | 295 | 275 | 470~630 | 21 | 34 | d=2a | d=3a | |||||
Deck system of Deaign Load HL-93 Steel Deck Compact Panel Bridge
The deck system of Deaign Load HL-93 Steel Deck Compact Panel Bridge is made up of transom, deck and kerb. The transom connects with panel and deck by bolt. The material for transom is Type H steel and the main dimension is 200mm×400mm(side:200mm×13mm,middle:374mm×8mm, the deck is Q345Aδ4.5 anti-skid surface and the vertical steel is Q345Aδ5 type U steel.
