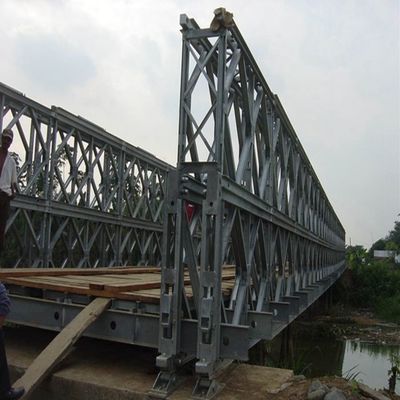

Prefabricated Galvanized Steel Truss Bridge For 50t Tracked Load

Prefabricated Galvanized Steel Truss Bridge For 50t Tracked Load
Prefabricated Galvanized Steel Truss Bridge For 50t Tracked Load

Large Image :  Prefabricated Galvanized Steel Truss Bridge For 50t Tracked Load

Product Details:
Place of Origin: CHINA
Brand Name: HARZONE
Model Number: CB100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Packaging Details: According to detailed order
Delivery Time: Negotiation
Payment Terms: According to detailed order
Detailed Product Description
Name: 50t Prefabricated Bridge Galvanized Steel Bridge For Tracked Load Brand Name: China Harzone
Color: According To Detailed Order Width: 3.2m-3.7m
Length: 6-60 Load: Tracked Load 50t
High Light:

prefabricated steel truss bridge

,

galvanized steel truss bridge

,

50t tracked load prefabricated bridge

50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load

50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load(also is named compact panel bridge or PSB) are manufactured by China Harzone Industry Corp., Ltd. 60ft bridge are Single-single construction, and the 90ft bridge are Double-Single Reinforced 2 (DSR2) construction according to the request made by the owner. We provide the all the components except the launching tools.



Panel of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load

The panels of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load are monolithic unit welded in the factory and assembled by panel pin on the construction site, and the main structures are assembled according with the request of span and loading. The hole to hole distance of panel is 3048mm, and the height is 1448mm. the material of up and down chord is 10# slot steel and the middle is 8# slot steel.



End system of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load

The bridge end of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load is composed of post end male, post end female, tie beam, bearing and bearing plate.



Launching equipment and tools  of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load

The launching equipment and tools of  50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load are made up of nose, roller, rock roller, joint, bolt and various spanners. The max loading of roller is 25t and the rock roller id 6t. The nose is netlike structure assembled by bridge components (not offered in this project).

The mechanical properties of Q345B

Yield point,σs MPa

Tensile strength

σb MPa

Extend rate

δs,

Work of concussion,Akv, (vertical), J

180obending test

d= dia.

a= thickness(dia.)

thickness(dia.,side length),mm +20℃ 0℃ -20℃ -40℃
≤16 >16~35 >35~50 >50~100 Not less than thickness(dia., mm)
Not less than ≤15 >16~100
345 325 295 275 470~630 21   34     d=2a d=3a





Prefabricated Galvanized Steel Truss Bridge For 50t Tracked Load 0



Prefabricated Galvanized Steel Truss Bridge For 50t Tracked Load 1

This is China Harzone Industry Corp.,Ltd., our company was founded in 1967,and we are a member of China State Shipbuilding Corpration Limited(CSSC),which is the largest central state-owned shipbuilding and military enterprise in China. As the pioneer in the research and manufacturing of emergency and rescue equipment in China, Harzone is the first company from the emergency industry listed in the stock exchange.

China Harzone dedicates itself to the following fields:

Design and manufacturing of military bridges and emergency rescue equipment

Design,manufacturing and installation of various kinds of steel bridges and steel structures

Research and re-fitting of special-purpose vehicles and equipment

Engineering contracting

Import and Export trading business

Contact Details
CHINA HARZONE INDUSTRY CORP.,LTD.

Contact Person: Ms. Sun Ruyu

Tel: 0086-13871570243

Fax: 86-10-88395884

Send your inquiry directly to us (0 / 3000)
