| Name: | 3048mm X 1448mm Galvanized Steel Panel Bridge | Brand Name: | China Harzone |
|---|---|---|---|
| Material: | Iron Bridge | Color: | According To Detailed Order |
| Width: | 3.2m-3.7m | Length: | 6-60 |
| Load: | Tracked Load 50t | ||
| High Light: | 3048mm x 1448mm temporary bailey bridge,width 3.2m temporary bailey bridge,galvanized steel panel bailey truss bridge |
||

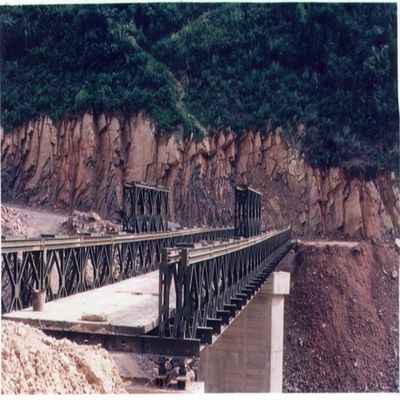

3048mm x 1448mm Galvanized Steel Panel Bridge(also is named compact panel bridge or PSB) are manufactured by China Harzone Industry Corp., Ltd. 60ft bridge are Single-single construction, and the 90ft bridge are Double-Single Reinforced 2 (DSR2) construction according to the request made by the owner. We provide the all the components except the launching tools.
Joint systems of 3048mm x 1448mm Galvanized Steel Panel Bridge
The joint system of 3048mm x 1448mm Galvanized Steel Panel Bridge is composed by Raker (for SS construction), bracing frame, vertical frame, vertical brace, sway brace and relative bolt.
Panel of 3048mm x 1448mm Galvanized Steel Panel Bridge
The panels of 3048mm x 1448mm Galvanized Steel Panel Bridge are monolithic unit welded in the factory and assembled by panel pin on the construction site, and the main structures are assembled according with the request of span and loading. The hole to hole distance of panel is 3048mm, and the height is 1448mm. the material of up and down chord is 10# slot steel and the middle is 8# slot steel.
End system of 3048mm x 1448mm Galvanized Steel Panel Bridge
The bridge end of 3048mm x 1448mm Galvanized Steel Panel Bridge is composed of post end male, post end female, tie beam, bearing and bearing plate.
Launching equipment and tools of 3048mm x 1448mm Galvanized Steel Panel Bridge
The launching equipment and tools of 3048mm x 1448mm Galvanized Steel Panel Bridge are made up of nose, roller, rock roller, joint, bolt and various spanners. The max loading of roller is 25t and the rock roller id 6t. The nose is netlike structure assembled by bridge components (not offered in this project).
The mechanical properties of Q345B
| Yield point,σs MPa |
Tensile strength σb MPa |
Extend rate δs, |
Work of concussion,Akv, (vertical), J |
180obending test d= dia. a= thickness(dia.) |
|||||||||
| thickness(dia.,side length),mm | +20℃ | 0℃ | -20℃ | -40℃ | |||||||||
| ≤16 | ＞16~35 | ＞35~50 | ＞50~100 | Not less than | thickness(dia., mm) | ||||||||
| Not less than | ≤15 | ＞16~100 | |||||||||||
| 345 | 325 | 295 | 275 | 470~630 | 21 | 34 | d=2a | d=3a | |||||
FAQ
1,How about quality control of your company?
Manufacturing process for steel bailey bridge in China,who has engaging in this line for over 50 years with an International Quality System Certification of ISO 9001:2015 and as cooperation partner with the research institutions of the People’s Liberation Army. And our products have been exported to more than 40 countries and regions in Asia,Africa,Latin America and Oceania.
2,Are you a factory or a trade company?
We are a factory with 8 production lines and various machines to fabricate steel bridge parts,pontoon bridges,mechanized bridges and other products.Also, we have get the exporting license to devote ourselves into global market.
3,Where is your loading port?
Shanghai Port,Nanjing Port,Tianjin Port.
