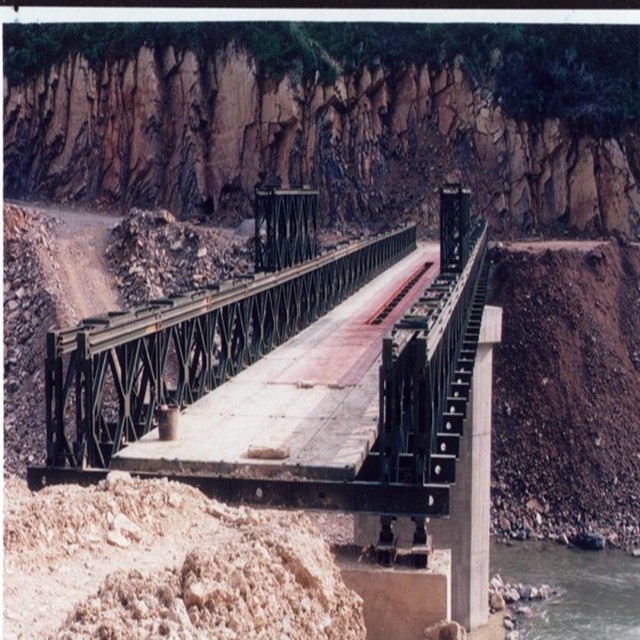

60t Steel Structure Bailey Truss Bridge Heavy Duty Use With Q345b Yield Point

60t Steel Structure Bailey Truss Bridge Heavy Duty Use With Q345b Yield Point
60t Steel Structure Bailey Truss Bridge Heavy Duty Use With Q345b Yield Point

Large Image :  60t Steel Structure Bailey Truss Bridge Heavy Duty Use With Q345b Yield Point

Product Details:
Place of Origin: CHINA
Brand Name: HARZONE
Model Number: CB100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Packaging Details: According to detailed order
Delivery Time: Negotiation
Payment Terms: According to detailed order
Detailed Product Description
Name: 60t Steel Structure Bridge For Heavy-Duty Use With Q345B Yield Point Brand Name: China Harzone
Material: Iron Bridge Color: According To Detailed Order
Width: 4.2 Length: 6-54
Load: HL-93
High Light:

60t bailey truss bridge

,

steel structure bailey truss bridge

,

heavy duty bailey bridge

60t Steel Structure Bridge for Heavy-Duty Use with Q345B Yield Point

60t Steel Structure Bridge for Heavy-Duty Use with Q345B Yield Point (also is named compact panel bridge or PSB) are manufactured by China Harzone Industry Corp., Ltd. 60ft bridge are Single-single construction, and the 90ft bridge are Double-Single Reinforced 2 (DSR2) construction according to the request made by the owner. We provide the all the components except the launching tools.



Panel of 60t Steel Structure Bridge for Heavy-Duty Use with Q345B Yield Point

The panels of 60t Steel Structure Bridge for Heavy-Duty Use with Q345B Yield Point are monolithic unit welded in the factory and assembled by panel pin on the construction site, and the main structures are assembled according with the request of span and loading. The hole to hole distance of panel is 3048mm, and the height is 1448mm. the material of up and down chord is 10# slot steel and the middle is 8# slot steel.



Launching equipment and tools  of 60t Steel Structure Bridge for Heavy-Duty Use with Q345B Yield Point

The launching equipment and tools of  60t Steel Structure Bridge for Heavy-Duty Use with Q345B Yield Point  are made up of nose, roller, rock roller, joint, bolt and various spanners. The max loading of roller is 25t and the rock roller id 6t. The nose is netlike structure assembled by bridge components (not offered in this project).

The mechanical properties of Q345B

Yield point,σs MPa

Tensile strength

σb MPa

Extend rate

δs,

Work of concussion,Akv, (vertical), J

180obending test

d= dia.

a= thickness(dia.)

thickness(dia.,side length),mm +20℃ 0℃ -20℃ -40℃
≤16 >16~35 >35~50 >50~100 Not less than thickness(dia., mm)
Not less than ≤15 >16~100
345 325 295 275 470~630 21   34     d=2a d=3a



Deck system of 60t Steel Structure Bridge for Heavy-Duty Use with Q345B Yield Point

The deck system of 60t Steel Structure Bridge for Heavy-Duty Use with Q345B Yield Point is made up of transom, deck and kerb. The transom connects with panel and deck by bolt. The material for transom is Type H steel and the main dimension is 200mm×400mm(side:200mm×13mm,middle:374mm×8mm, the deck is Q345Aδ4.5 anti-skid surface and the vertical steel is Q345Aδ5 type U steel.



60t Steel Structure Bailey Truss Bridge Heavy Duty Use With Q345b Yield Point 0



60t Steel Structure Bailey Truss Bridge Heavy Duty Use With Q345b Yield Point 1

Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

  1. Type of Bridge
  2. Span, Centre to Centre of Bearing of Supports (Bridge Length)
  3. Type of Deck
  4. bridge Width
  5. Sidewalk
  6. Design Loading
  7. Environmental Condition
  8. Life service requirement ( for how many years the bridge is intended for use)
  9. Regarding the form of anti-corrosion, is it paint (what is the color requirement?) or hot-dip galvanizing?
  10. Quotation terms (EXW or other)
  11. Better if there are site pictures can be provided.

Please feel free to contact with us if you have any questions.

Looking forward to your reply.

Warm regards,

Contact Details
CHINA HARZONE INDUSTRY CORP.,LTD.

Contact Person: chinaharzone

Tel: +8613871570243

Send your inquiry directly to us (0 / 3000)
