Portable Steel Bailey Bridge with Single and Double Lane Options Suitable for Roadway Widths from Three to Seven Meters

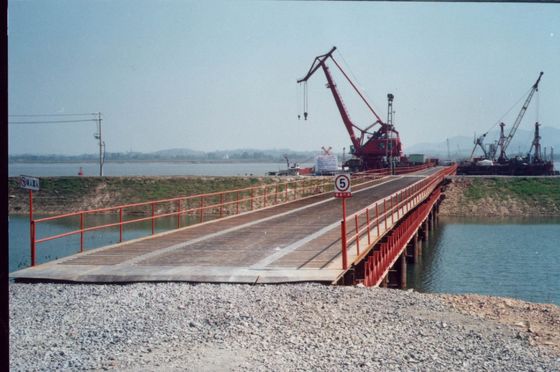

Large Image : Portable Steel Bailey Bridge with Single and Double Lane Options Suitable for Roadway Widths from Three to Seven Meters

Product Details:

Place of Origin:	China
Brand Name:	Harzone
Model Number:	CB100 TYPE, CB200 TYPE

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Packaging Details:	According to detailed order
Delivery Time:	negotiation
Payment Terms:	According to detailed order

Contact Now

Detailed Product Description

Lane:	Single Lane 3.15m~4.2m，Double Lane 7.35m	Secondary Steel:	GB Q235
Spancapability:	Can Span Up To 200 Feet (61 Meters) With Multiple Panels	Cost:	Affordable
Loadcapacity:	Up To 70 Tons Depending On Configuration	Surface:	Galvanized
Corrosion Prevention:	Hot Dip Galvanized	Modularity:	Modular Design Allows Extension By Adding Panels
Transportability:	Designed For Easy Transport By Trucks Or Helicopters	Applications:	Perforated, Welded And Woven Products
Material:	Steel	Nme:	Bailey Bridge
Surface Finish:	Painted Or Galvanized	Product Capability:	60000 Pieces Per Year
Metal Construction:	One-piece
Highlight:	Portable Steel Bailey Bridge , Single Lane Bailey Bridge , Double Lane Bailey Bridge

Portable Steel Bailey Bridge Solutions

Versatile single and double lane portable steel bridges designed for roadway widths from three to seven meters. These modular bridge systems offer exceptional flexibility, durability, and rapid deployment capabilities for various applications.

Key Features

Multiple span configurations

High load-bearing capacity

Lightweight modular components

Quick assembly and disassembly

Strong environmental adaptability

Simple tool and manpower operation

Surface Protection Options

Available with protective paint coating or hot-dip galvanized finish for enhanced durability and corrosion resistance.

Technical Specifications

Configuration	Roadway Width	Span Range
Single Lane	3.15m / 4.2m	30ft - 200ft
Double Lane	7.35m	30ft - 180ft
Additional Specifications: Load capacity designed according to requirements \| Deck options: steel deck/timber deck \| Bridge types: CB100, CB200

Product Advantages

Simple structural design for easy implementation
Convenient transportation and handling
Rapid erection and disassembly capabilities
Exceptional heavy loading capacity
Superior stability and long fatigue life
Flexible span and loading capacity alternatives

Engineering Benefits

High strength and significant stiffness compared to concrete bridges
Reduced beam height and self-weight for efficient design
Uniform material quality and elastic modulus properties
Factory manufacturing with on-site assembly for reduced construction time
Year-round installation capability unaffected by seasonal conditions
Industrialized manufacturing for consistent quality and easy transport
Easy maintenance, replacement, and material recyclability

Application Scope

Suitable for beam bridges, arch bridges, rigid frame bridges, cable-stayed bridges, suspension bridges, and passenger footbridges.

Bridge Configuration Options

Available as temporary bridges, emergency bridges, and fixed bridges. The system enables erection of suspension bridges with varied spans using minimal components.

Compact 200 Panel Bridge Features

Enhanced panel height of 2.134m with alternating joint design between reinforcement chords and panels. This innovative approach reduces inelastic deformation from oversized pinholes and incorporates pre-arch methodology to minimize mid-span and vertical deflection.

Bolt-connected components utilize orienting sleeve-fixing methods for improved connection accuracy. This creates shear in orienting sleeves and tension in bolts, extending bolt service life and ensuring panel bridge safety. Composite wind-resistant braces connect to transom/girders for enhanced overall stability.

Competitive Advantages

Heavy loading capacity

Exceptional stability

Long fatigue life

Lightweight construction

Cost-effective solution

Easy and fast erection
