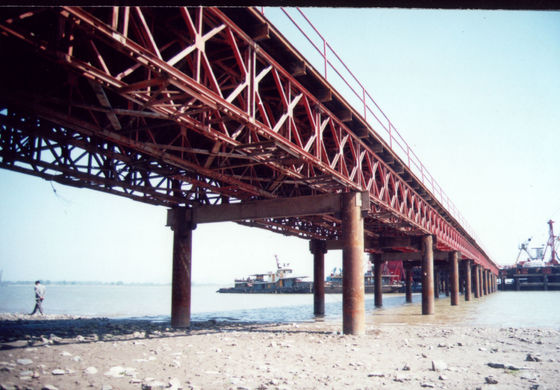

Durable portable Bailey Bridge with steel or timber deck options and corrosion resistant surface protection for long term

A durable portable Bailey Bridge featuring steel or timber deck options with corrosion-resistant surface protection for long-term performance. These portable steel bridges are widely used across various applications, offering versatile span capabilities, substantial load-bearing capacity, lightweight components, easy disassembly, and strong adaptability for rapid construction using simple tools and manual labor.

Available with paint or hot-dip galvanized surface protection.

The durable portable Bailey Bridge is a standardized bridge system that has been extensively adopted and remains one of the most popular bridge solutions worldwide.

Beam bridges, arch bridges, rigid frame bridges, cable-stayed bridges, suspension bridges, and pedestrian footbridges.

Available as Temporary Bridges, Emergency Bridges, and Fixed Bridges. The system enables erection of suspension bridges with varied spans, featuring minimal components, light weight, and cost-effectiveness. Bailey Bridge construction requires no special tools or heavy equipment, with elements sized for easy transport while maintaining substantial load-bearing capacity. This system represents exceptional military engineering.

The Compact 200 panel bridge shares visual similarities with the Compact 100 panel bridge but features an increased panel height of 2.134m. It utilizes alternating joints between Reinforcement Chords and panel joints to reduce inelastic deformation from oversized pinholes. Pre-arch methodology significantly reduces mid-span and vertical deflection. Bolt-connected components employ orienting sleeve-fixing methods to enhance connection accuracy, with shear developed in orienting sleeves and tension in bolts, extending bolt service life and ensuring panel bridge safety. Composite wind-resistant braces connect to transom/girders to improve overall bridge stability.
