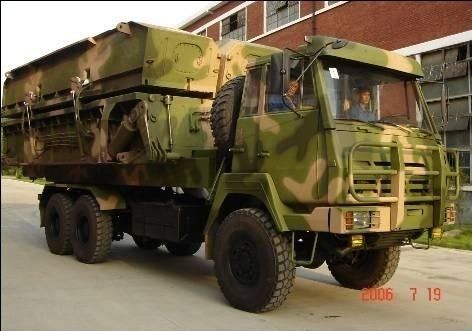

Self Propelled Military Trestle / Floating Ribbon Pontoon Bridge For Ferry Rafts
Military Trestle Pontoon Bridge is a set of self-propelled heavy pontoon equipment, mainly used for constructing ferry rafts and pontoon bridge , to insure tank,artillery and other heavy armament to get across the large rivers.
It is composed of pontoon units, transport vehicles and auxiliary equipment. Different units can be assembled into different forms in accordance with certain requirements, such as ribbon rafts, trestle rafts, anchoring rafts, ribbon floating bridge, ribbon-trestle combination floating bridge, and so on.
Specification for Military Trestle Pontoon Bridge |
|
Rafts |
|
Load capacity (t) |
≤120 |
Loaded speed (km/h) |
≤ 12 |
Unloaded speed (km/h) |
≤ 14 |
Erection time (min) |
≤25 |
Erection operator |
≤26 |
|
|
Floating bridge |
|
Load capacity |
|
Max. Tracked load (t) |
60 |
Max. Axle load (t) |
13 |
Roadway width (m) |
≤ 4.5 |
Erection time (min) |
≤ 25 |
Erection operator |
≤ 26 |
Erection time for anchor rafts (min) |
≤ 15 |
Erection operator for anchor rafts |
≤ 16 |
Erection time for 100m pontoon bridge (min) |
≤ 40 |
Erection operator for 100m pontoon bridge |
≤ 80 |
|
|
Transport vehicle |
|
Chassis |
SX2190Q(6×6) |
|
|
Max. Current (m/s) |
≤ 3.5 |
Transportation |
by roadway and railway |
