60tf Military Trestle Pontoon Bridge / Power Pontoon Bridge / Military Bridging Equipment

60tf Military Trestle Pontoon Bridge / Power Pontoon Bridge / Military Bridging Equipment

60tf Military Trestle Pontoon Bridge / Power Pontoon Bridge / Military Bridging Equipment

Product Details:

Place of Origin: China
Brand Name: Harzone

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Contact Now
Detailed Product Description


60tf Military Trestle Pontoon Bridge / Power Pontoon Bridge / Military Bridging Equipment

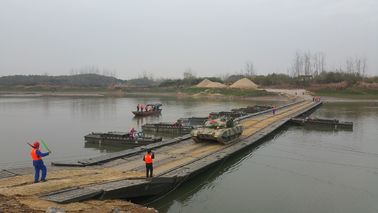

Military Trestle Pontoon Bridge is a set of self-propelled heavy pontoon equipment, mainly used for constructing ferry rafts and pontoon bridge , to insure tank,artillery and other heavy armament to get across the large rivers.

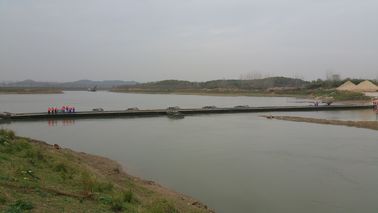

It is composed of pontoon units, transport vehicles and auxiliary equipment. Different units can be assembled into different forms in accordance with certain requirements, such as ribbon rafts, trestle rafts, anchoring rafts, ribbon floating bridge, ribbon-trestle combination floating bridge, and so on.



Specification for Military Trestle Pontoon Bridge



Rafts



Load capacity (t)

≤120

Loaded speed (km/h)

≤ 12

Unloaded speed (km/h)

≤ 14

Erection time (min)

  ≤25

Erection operator

   ≤26





Floating bridge



Load capacity



Max. Tracked load (t)

60

Max. Axle load (t)

13

Roadway width (m)

≤ 4.5

Erection time (min)

≤ 25

Erection operator

≤ 26

Erection time for anchor rafts (min)

≤ 15

Erection operator for anchor rafts

  ≤ 16

Erection time for 100m pontoon bridge (min)

 ≤ 40

Erection operator for 100m pontoon bridge

    ≤ 80

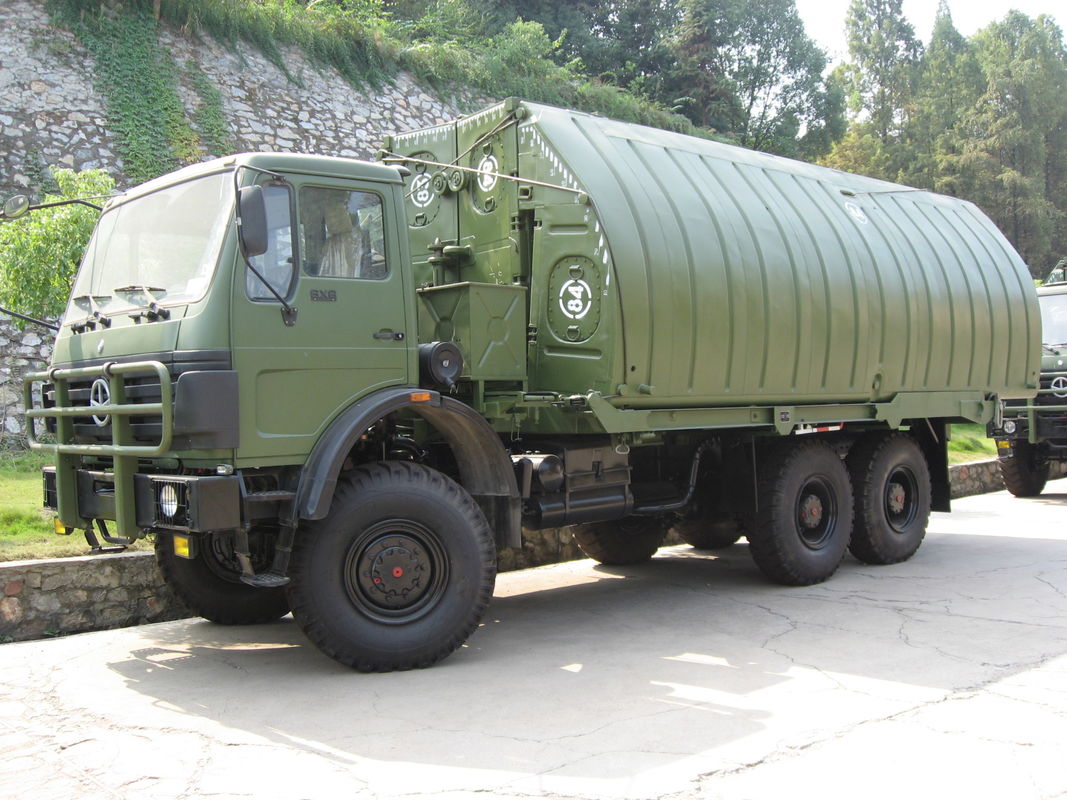

Transport vehicle



Chassis

  SX2190Q(6×6)





Max. Current (m/s)

≤ 3.5

Transportation

   by roadway and railway
