Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment

Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment
Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment

Large Image :  Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Material: Steel Color: Can Be Customized
Application: Boat,pontoon Bridge,Ship Usage: Protect Boat
Packing: Standard Package Type: Heavy,Floating Dock
Warranty: 1 Year
High Light:

Load 13t Military Pontoon Bridge

,

Load Capacity Military Pontoon Bridge

,

Load Capacity floating pontoon bridge

Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment

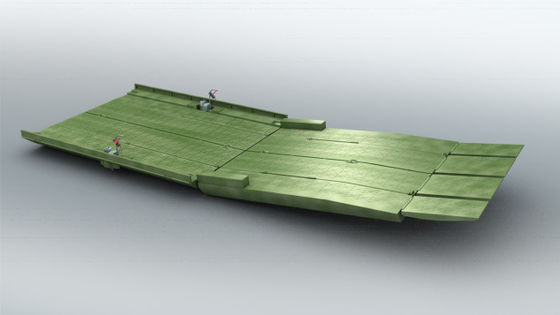

Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment is a set of self-propelled heavy pontoon equipment used for constructing 60tf floating bridges and 60tf ferry rafts over current velocity not higher than 3m/sec. The load capacity for tracked load is 60T, and for wheeled load on axle is 13T.The complete set consists of 8 interior bays, 2 ramp bays and 10 transporters of pontoon.



Specifications for Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment



Floating bridge



Length of one complete set

  104m

Load capacity

60t(tracked load), 13t(axle load)

Roadway width

  5.7m

Current velocity

≤3.0m/s

Length of a single pontoon unit

  10m

Ramp Height

not less than 3m





Rafts



One raft consists of 3 interior bays and 1 ramp bay



Number of combined ferry raft

2

Load capacity

     60t(tracked load), 13t(axle load)

Max. speed with full load

3.0m/s

Max. speed with empty load

   4.0m/s



Transport vehicle of  Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment



Transport vehicle is refitted by 8×8 wheeled cross-country truck, with turning rack, mobile platform, stable support leg, hanger frame, hydraulic system and electrical system on it.

The transport vehicle is used to fold, load and transport interior and shore bays as well as to transport and erect gangplank.



Transport vehicle performance data



Items Data
No load (L×W×H) ≤12m×3.4m×3.1m
Loaded interior bay (L×W×H) ≤13m×3.5m×4m
Loaded shore bay (L×W×H) ≤13m×3.5m×4m
Chassis vehicle 8×8-wheel country-cross truck
Total weight of cross-country trucks ≯31.5t
Max Speed ≮85km/h
Max Gradient ≮40%


Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment 0Load Capacity Axle Load 13t Military Pontoon Bridge Pontoon Equipment 1

FAQ

1,How about quality control of your company?

Manufacturing process for steel bailey bridge in China,who has engaging in this line for over 50 years with an International Quality System Certification of ISO 9001:2015 and as cooperation partner with the research institutions of the People’s Liberation Army. And our products have been exported to more than 40 countries and regions in Asia,Africa,Latin America and Oceania.



2,Are you a factory or a trade company?

We are a factory with 8 production lines and various machines to fabricate steel bridge parts,pontoon bridges,mechanized bridges and other products.Also, we have get the exporting license to devote ourselves into global market.



3,Where is your loading port?

Shanghai Port,Nanjing Port,Tianjin Port.
