Hz100 Power Pontoon Bridge Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m

Hz100 Power Pontoon Bridge Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m
Hz100 Power Pontoon Bridge Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m

Large Image :  Hz100 Power Pontoon Bridge Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Product Name: HZ100 Power Pontoon Bridge Emergency Equipment Type: Power Pontoon Bridge
Feature: Reusable Bridge Load Capacity: MLC80
Carriageway Width: 5m Surface Protection: Anticorrosion Coatings
Color: Can Be Customized
High Light:

hz100 power pontoon bridge

,

hz100 military pontoon bridge

,

anticorrosion coatings power pontoon bridge

Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100 Power Pontoon Bridge Emergency Equipment

  • General introduction of Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100 Power Pontoon Bridge Emergency Equipment

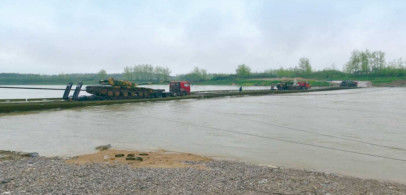

Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100 Power Pontoon Bridge Emergency Equipment is a kind of heavy pontoon equipment. It is suitable for constructing floating bridges MLC80 to ensure tracked load 72t or wheel load less than 83t to cross over the rivers whose current velocity is less than 2.5m/s. It can also be used as ferrying rafts of 20t, 40t, 65t, and 85t.

A complete set of Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100 Power Pontoon Bridge Emergency Equipment consists of 8 interior bays (each interior bay is equipped with 2 x OBMs), 2 ramp bays, 10 transport vehicles and auxiliary equipment.

  • MAIN TECHNICAL DATA of Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100 Power Pontoon Bridge Emergency Equipment​

 Main size of the pontoon body

  • Width 8.3m
  • Carriageway width 5 m
  • Pontoon shape depth 0.8m

Design Load MLC80

  • Tracked load 72t
  • Wheel load 83t

Available velocity of flow

  • Vehicle loading 2.5m/s
  • Bridge erection 2.5m/s
  • Ferry with full load 2.5m/s

Specifications for Power Pontoon Bridge



Floating bridge



Length of one complete set

104m

Load capacity

72(tracked load), 83t(axle load)

Roadway width

 5m

Current velocity

≤3.0m/s

Length of a single pontoon unit

10m

Ramp Height

not less than 3m



Transport vehicle of of Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100 Power Pontoon Bridge Emergency Equipment



Length Of One Complete Set Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100 Power Pontoon Bridge Emergency Equipment Transport vehicle is refitted by 8×8 wheeled cross-country truck, with turning rack, mobile platform, stable support leg, hanger frame, hydraulic system and electrical system on it.

The transport vehicle is used to fold, load and transport interior and shore bays as well as to transport and erect gangplank.



Transport vehicle performance data

Items Data
No load (L×W×H) ≤12m×3.4m×3.1m
Loaded interior bay (L×W×H) ≤13m×3.5m×4m
Loaded shore bay (L×W×H) ≤13m×3.5m×4m
Chassis vehicle 8×8-wheel country-cross truck
Total weight of cross-country trucks 31.5t
Maximal speed 85km/h
Maximal Gradient 40%
Hz100 Power Pontoon Bridge Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m 0

This is China Harzone Industry Corp.,Ltd., our company was founded in 1967,and we are a member of China State Shipbuilding Corpration Limited(CSSC),which is the largest central state-owned shipbuilding and military enterprise in China. As the pioneer in the research and manufacturing of emergency and rescue equipment in China, Harzone is the first company from the emergency industry listed in the stock exchange.



China Harzone dedicates itself to the following fields:

Design and manufacturing of military bridges and emergency rescue equipment

Design,manufacturing and installation of various kinds of steel bridges and steel structures

Research and re-fitting of special-purpose vehicles and equipment

Engineering contracting

Import and Export trading business



Harzone products have been exported to more than 40 countries and regions around the world and own a good reputation from international client.Moreover,China Harzone has been listed in the state emergency purchasing system and also the largest qualified rescue machinery supplier of the United Nations Emergency Procurement.
