Emergency Equipment Floating Pontoon Bridge Ferrying Rafts

Emergency Equipment Floating Pontoon Bridge Ferrying Rafts
Emergency Equipment Floating Pontoon Bridge Ferrying Rafts

Large Image :  Emergency Equipment Floating Pontoon Bridge Ferrying Rafts

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Product Name: Vehicle Loading 2.5m/S Pontoon Bridge Emergency Equipment Ferrying Rafts Type: Floating Bridge
Feature: Emergency Equipment Load Capacity: 73t
Color: Can Be Customized Material: Stainless Steel
Application: Pontoon Bridge,Ship
High Light:

emergency equipment floating pontoon bridge

,

ferrying rafts floating pontoon bridge

,

ferrying rafts military pontoon bridge

Vehicle Loading 2.5m/S Pontoon Bridge Emergency Equipment Ferrying Rafts

  • General introduction of Vehicle Loading 2.5m/S Pontoon Bridge Emergency Equipment Ferrying Rafts

Vehicle Loading 2.5m/S Pontoon Bridge Emergency Equipment Ferrying Rafts is a kind of heavy pontoon equipment. It is suitable for constructing floating bridges MLC80 to ensure tracked load 72t or wheel load less than 83t to cross over the rivers whose current velocity is less than 2.5m/s. It can also be used as ferrying rafts of 20t, 40t, 65t, and 85t.

A complete set of power pontoon bridge consists of 8 interior bays (each interior bay is equipped with 2 x OBMs), 2 ramp bays, 10 transport vehicles and auxiliary equipment.

  • MAIN TECHNICAL DATA of Vehicle Loading 2.5m/S Pontoon Bridge Emergency Equipment Ferrying Rafts

 Main size of the pontoon body

  • Width 8.3m
  • Carriageway width 5 m
  • Pontoon shape depth 0.8m

Design Load MLC80

  • Tracked load 72t
  • Wheel load 83t

Available velocity of flow

  • Vehicle loading 2.5m/s
  • Bridge erection 2.5m/s
  • Ferry with full load 2.5m/s

Specifications for Power Pontoon Bridge



Floating bridge



Length of one complete set

104m

Load capacity

72(tracked load), 83t(axle load)

Roadway width

 5m

Current velocity

≤3.0m/s

Length of a single pontoon unit

10m

Ramp Height

not less than 3m



Transport vehicle of of Vehicle Loading 2.5m/S Pontoon Bridge Emergency Equipment Ferrying Rafts



Vehicle Loading 2.5m/S Pontoon Bridge Emergency Equipment Ferrying Rafts Transport vehicle is refitted by 8×8 wheeled cross-country truck, with turning rack, mobile platform, stable support leg, hanger frame, hydraulic system and electrical system on it.

The transport vehicle is used to fold, load and transport interior and shore bays as well as to transport and erect gangplank.



Transport vehicle performance data

Items Data
No load (L×W×H) ≤12m×3.4m×3.1m
Loaded interior bay (L×W×H) ≤13m×3.5m×4m
Loaded shore bay (L×W×H) ≤13m×3.5m×4m
Chassis vehicle 8×8-wheel country-cross truck
Total weight of cross-country trucks 31.5t
Maximal speed 85km/h
Maximal Gradient 40%

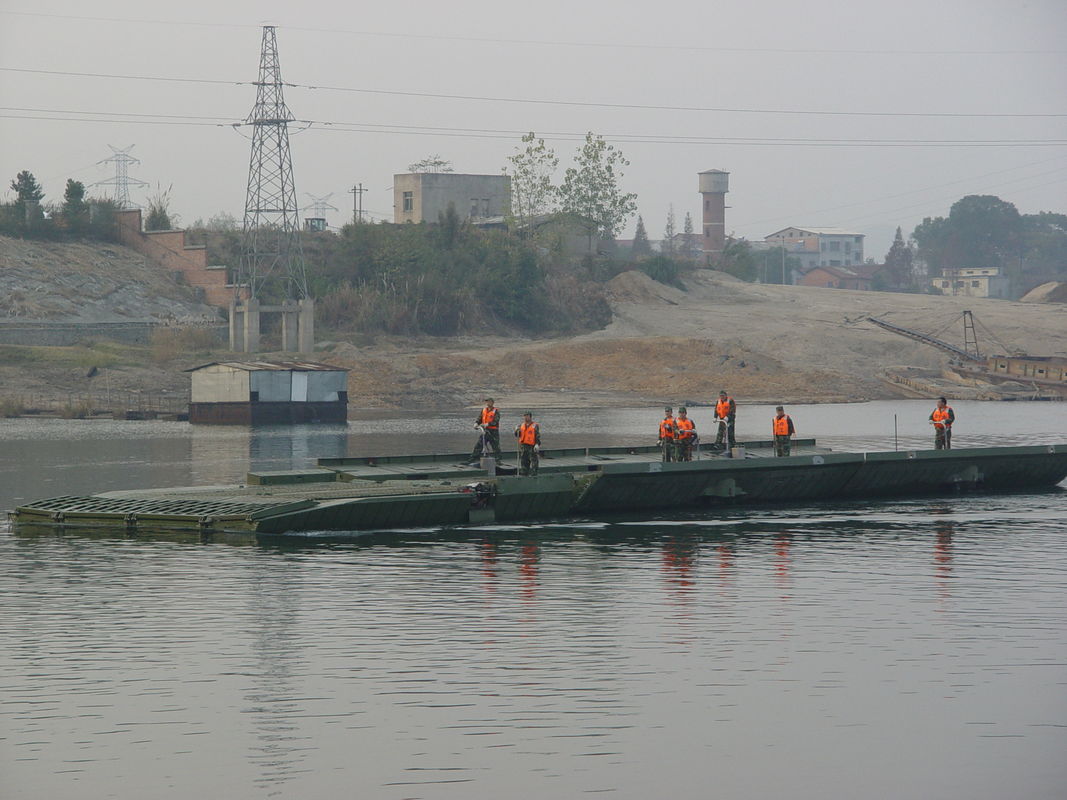

Emergency Equipment Floating Pontoon Bridge Ferrying Rafts 0

China Harzone is one of the most professional “pontoon bridge ” manufacturers all over the world and we always make our effort to provide our best service and products to our clients. So far, over 40 countries in Asia, Africa and Latin America have purchased our products, including Myanmar, Thailand, Peru, Ecuador, Sudan, Pakistan, Laos and so on.

Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

  • The bridge location
  • About the load requirement, we need to know the vehicle axle load/tracked load. better pls send pictures or drawings of the heaviest vehicle.
  • Length and width of the bridge.
  • Traffic directions: one way or two way.
  • Number of roadway (Four, six or other)
  • Water speed/water depth/Water level variation.
  • Sea condition description (Beaufort scale)
  • Local climate condition (temperature, wind speed, etc.)
  • Soil geography of water bottom and embankment.
  • Bank form (Steep bank, Slope, or gradient)
  • Life service requirement ( for how many years the bridge is intended for use)
  • Quotation terms (EXW or other)
  • Better if there are site pictures can be provided.

Please feel free to contact with us if you have any questions.
