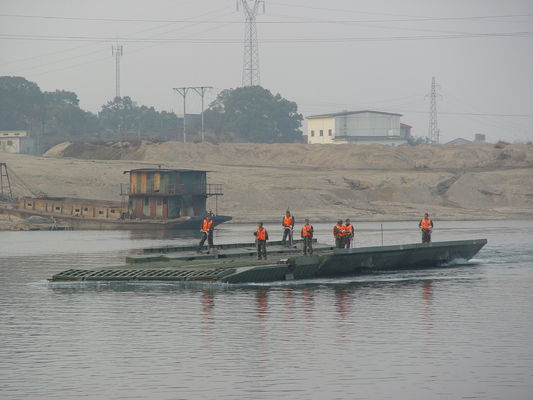

Surface Protection Military Pontoon Bridge Anti Corrosion Coatings

Surface Protection Military Pontoon Bridge Anti Corrosion Coatings
Surface Protection Military Pontoon Bridge Anti Corrosion Coatings

Large Image :  Surface Protection Military Pontoon Bridge Anti Corrosion Coatings

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Product Name: HZ100 Power Pontoon Bridge Emergency Equipment Type: Power Pontoon Bridge
Feature: Reusable Bridge Load Capacity: MLC80
Carriageway Width: 5m Surface Protection: Anti-corrosion Coatings
Color: Can Be Customized
High Light:

surface protection military pontoon bridge

,

anti corrosion coatings military pontoon bridge

,

anticorrosion coatings pontoon military

Surface Protection Anti-Corrosion Coatings Flaoting Bridge Pontoon Emergency Equipment



General introduction of  Surface Protection Anti-Corrosion Coatings Flaoting Bridge Pontoon Emergency Equipment



Surface Protection Anti-Corrosion Coatings Flaoting Bridge Pontoon Emergency Equipment is a kind of heavy pontoon equipment. It is proper for erecting floating bridges MLC80 to guarantee tracked load 72t or wheel load fewer than 83t to cross over the rivers whose present velocity is less than 2.5m/s. Power pontoon bridge can also be used as transporting rafts of 20t, 40t, 65t, and 85t.

A whole set of power pontoon bridge contains of 8 interior bays (each interior bay is equipped with 2 x OBMs), 2 ramp bays, 10 transport vehicles and supporting equipment.



MAIN TECHNICAL DATA of  Surface Protection Anti-Corrosion Coatings Flaoting Bridge Pontoon Emergency Equipment



 Main size of the pontoon body

Width 8.3m

Carriageway width5 m



Available velocity of flow

Vehicle loading 2.5m/s

Bridge erection 2.5m/s

Ferry with full load 2.5m/s



Design Load MLC80

Tracked load 72t

Wheel load 83t

Pontoon shape depth 0.8m



Specifications for Power Pontoon Bridge



Floating bridge



Length of one complete set

104m

Load capacity

72(tracked load), 83t(axle load)

Roadway width

 5m

Current velocity

≤3.0m/s

Length of a single pontoon unit

10m

Ramp Height

not less than 3m



Transport vehicle of Surface Protection Anti-Corrosion Coatings Flaoting Bridge Pontoon Emergency Equipment



Span Of One Whole Set 104m Emergency Equipment Power Pontoon Bridge Transport vehicle is refitted by 8×8 wheeled cross-country truck, with turning rack, mobile platform, stable support leg, hanger frame, hydraulic system and electrical system on it.

The transport vehicle is used to fold, load and transport interior and shore bays as well as to transport and erect gangplank.



COMPONENTS



Interior bay

Interior bay is used to construct pontoon bridge and ferrying raft. An interior bay weights 10t. It is combined by 2 bow pontoons and 2 roadway pontoons. The main size of unfolded interior bay is 10m of length, 8.3m of width and 1.35m of height with 5m of carriage way.

Each bow pontoon of interior bay has installed one set of power system which is made up of Outboard engine, reversed frame, operation handle, battery, control box and oil tank.

Surface Protection Military Pontoon Bridge Anti Corrosion Coatings 0

China Harzone is one of the most professional “pontoon bridge” manufacturers all over the world and we always make our effort to provide our best service and products to our clients. So far, over 40 countries in Asia, Africa and Latin America have purchased our products, including Myanmar, Thailand, Peru, Ecuador, Sudan, Pakistan, Laos and so on.

We will work on your requirement asap.Concerning the bridge project that you required, before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

  • The bridge location
  • About the load requirement, we need to know the vehicle axle load/tracked load. better pls send pictures or drawings of the heaviest vehicle.
  • Length and width of the bridge.
  • Traffic directions: one way or two way.
  • Number of roadway (Four, six or other)
  • Water speed/water depth/Water level variation.
  • Sea condition description (Beaufort scale)
  • Local climate condition (temperature, wind speed, etc.)
  • Soil geography of water bottom and embankment.
  • Bank form (Steep bank, Slope, or gradient)
  • Life service requirement ( for how many years the bridge is intended for use)
  • Quotation terms (EXW or other)
  • Better if there are site pictures can be provided.
