Product Details:
Payment & Shipping Terms:
|
| Product Name: | Length Of One Complete Set 104m Flaoting Bridge Power Pontoon Bridge | Type: | Bridge |
|---|---|---|---|
| Feature: | Emergency Bridge | Usage: | Pontoon Bridge, Ferry |
| Lifespan: | 12 Years | Size: | 104m |
| Material: | Steel | ||
| High Light: | military power pontoon bridge,104m power pontoon bridge,104m military pontoon bridge |
||
General introduction of Length Of One Complete Set 104m Flaoting Bridge Power Pontoon Bridge
Length Of One Complete Set 104m Flaoting Bridge Power Pontoon Bridge is a kind of heavy pontoon equipment.
One set of Length Of One Complete Set 104m Flaoting Bridge Power Pontoon Bridge contains of 8 interior bays (each interior bay is equipped with 2 x OBMs), 2 ramp bays, 10 transport vehicles and supporting equipment.
Length Of One Complete Set 104m Flaoting Bridge Power Pontoon Bridge proper for creating floating bridges MLC80 to assurance tracked load 72t or wheel load fewer than 83t to cross over the rivers whose present velocity is less than 2.5m/s.
Length Of One Complete Set 104m Flaoting Bridge Power Pontoon Bridge also be used as ferry of 20t, 40t, 65t, and 85t
COMPONENTS of Length Of One Complete Set 104m Flaoting Bridge Power Pontoon Bridge
Interior bay
Interior bay is used to construct pontoon bridge and ferrying raft. An interior bay weights 10t. It is combined by 2 bow pontoons and 2 roadway pontoons. The chief size of unfolded interior bay is 10m of length, 8.3m of width and 1.35m of height with 5m of carriage way.
Detailed data of OBM
| Item | Data |
| Type | YAMAHA85AETL |
| Transmission ratio | 13:26(2.0) |
| No of cylinder | 3 |
| Displacement (cm3) | 1140 |
| Diameter and stroke (mm) | 82×72 |
| output (kw/hp) | 62.5/85.0 |
| Compress rate | 5.1 |
| Operation type | Line remote control |
| Oil supply | Pre-mix |
| Oil tank capacity | 35L |

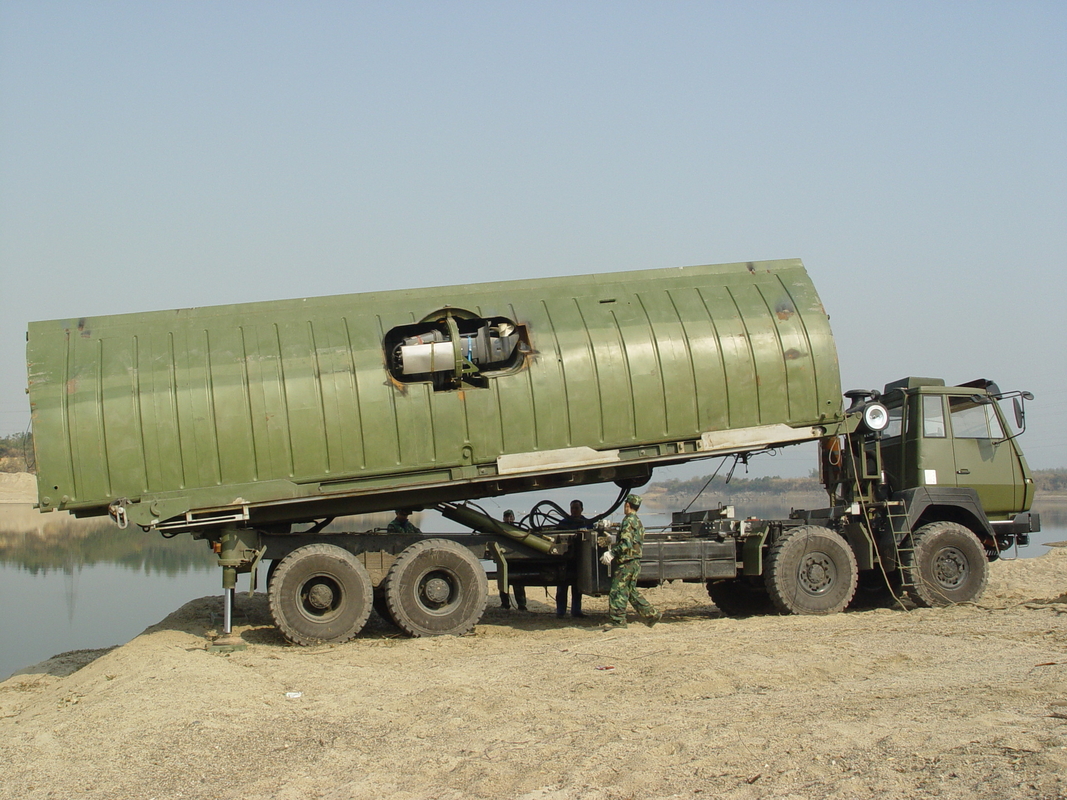

Transport vehicle
Transport vehicle is refitted by 8×8 wheeled cross-country truck, with turning rack, mobile platform, stable support leg, hanger frame, hydraulic system and electrical system on it.
MAIN TECHNICAL DATA of Current Velocity ≤3.0m/S Flaoting Bridge Power Pontoon Bridge
|
Specifications for Power Pontoon Bridge |
|
|
Floating bridge |
|
| Length of a single pontoon unit | 10m |
|
Length of one complete set |
104m |
|
Load capacity |
72(tracked load), 83t(axle load) |
|
Roadway width |
5m |
|
Current velocity |
≤3.0m/s |
|
Ramp Height |
not less than 3m |
China Harzone is one of the most professional “pontoon bridge” manufacturers all over the world and we always make our effort to provide our best service and products to our clients. So far, over 40 countries in Asia, Africa and Latin America have purchased our products, including Myanmar, Thailand, Peru, Ecuador, Sudan, Pakistan, Laos and so on.
China Harzone dedicates itself to the following fields:
Design and manufacturing of military bridges and emergency rescue equipment
Design,manufacturing and installation of various kinds of steel bridges and steel structures
Research and re-fitting of special-purpose vehicles and equipment
Engineering contracting
Import and Export trading business
Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:
Please feel free to contact with us if you have any questions.
Looking forward to your reply.
