20t Ferry Emergency Power Pontoon Bridge Steel

20t Ferry Emergency Power Pontoon Bridge Steel
20t Ferry Emergency Power Pontoon Bridge Steel

Large Image :  20t Ferry Emergency Power Pontoon Bridge Steel

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Product Name: Length Of One Complete Set 104m Flaoting Bridge Power Pontoon Bridge​ Type: Bridge
Feature: Emergency Bridge Usage: Pontoon Bridge, Ferry
Lifespan: 12 Years Size: 104m
Material: Steel
High Light:

20t power pontoon bridge

,

20t military pontoon bridge

,

ferry emergency power pontoon bridge

20t Ferry Emergency Bridge Power Pontoon Bridge​



General introduction of  20t Ferry Emergency Bridge Power Pontoon Bridge​



20t Ferry Emergency Bridge Power Pontoon Bridge​ is a kind of heavy pontoon equipment.

One set of 20t Ferry Emergency Bridge Power Pontoon Bridge​​ contains of 8 interior bays (each interior bay is equipped with 2 x OBMs), 2 ramp bays, 10 transport vehicles and supporting equipment.

20t Ferry Emergency Bridge Power Pontoon Bridge​ proper for creating floating bridges MLC80 to assurance tracked load 72t or wheel load fewer than 83t to cross over the rivers whose present velocity is less than 2.5m/s.

20t Ferry Emergency Bridge Power Pontoon Bridge​ also be used as ferry of 20t, 40t, 65t, and 85t



COMPONENTS of Length Of 20t Ferry Emergency Bridge Power Pontoon Bridge​





Interior bay

Interior bay is used to construct pontoon bridge and ferrying raft. An interior bay weights 10t. It is combined by 2 bow pontoons and 2 roadway pontoons. The chief size of unfolded interior bay is 10m of length, 8.3m of width and 1.35m of height with 5m of carriage way.



Detailed data of OBM



Item Data
Type YAMAHA85AETL
Transmission ratio 13:26(2.0)
No of cylinder 3
Displacement (cm3) 1140
Diameter and stroke (mm) 82×72
output (kw/hp) 62.5/85.0
Compress rate 5.1
Operation type Line remote control
Oil supply Pre-mix
Oil tank capacity 35L




Transport vehicle

Transport vehicle is refitted by 8×8 wheeled cross-country truck, with turning rack, mobile platform, stable support leg, hanger frame, hydraulic system and electrical system on it.



MAIN TECHNICAL DATA of Current Velocity ≤3.0m/S Flaoting Bridge Power Pontoon Bridge​​



Specifications for Power Pontoon Bridge



Floating bridge



Length of a single pontoon unit 10m

Length of one complete set

104m

Load capacity

72(tracked load), 83t(axle load)

Roadway width

 5m

Current velocity

≤3.0m/s

Ramp Height

not less than 3m

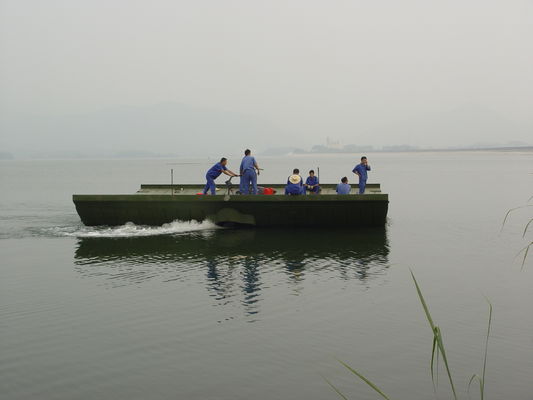

20t Ferry Emergency Power Pontoon Bridge Steel 0

20t Ferry Emergency Power Pontoon Bridge Steel 1

FAQ

1,How about quality control of your company?

Manufacturing process for steel bailey bridge in China,who has engaging in this line for over 50 years with an International Quality System Certification of ISO 9001:2015 and as cooperation partner with the research institutions of the People’s Liberation Army. And our products have been exported to more than 40 countries and regions in Asia,Africa,Latin America and Oceania.



2,Are you a factory or a trade company?

We are a factory with 8 production lines and various machines to fabricate steel bridge parts,pontoon bridges,mechanized bridges and other products.Also, we have get the exporting license to devote ourselves into global market.



3,Where is your loading port?

Shanghai Port,Nanjing Port,Tianjin Port.
