Prefabricated Steel Truss Bridge with Designed Load HL93 for Span Range 6 to 60 Meters Featuring Steel or Wood Deck Options

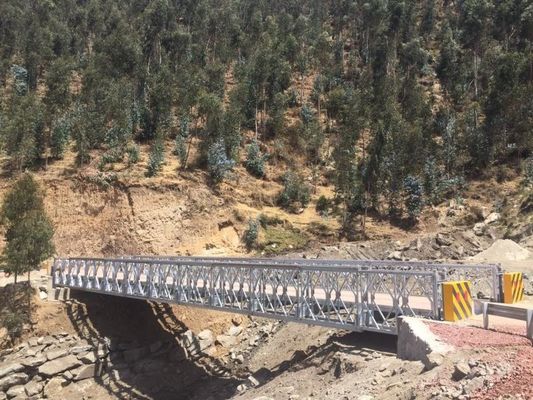

Large Image : Prefabricated Steel Truss Bridge with Designed Load HL93 for Span Range 6 to 60 Meters Featuring Steel or Wood Deck Options

Product Details:

Place of Origin:	China
Brand Name:	Harzone
Certification:	ISO9001:2015

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiated
Supply Ability:	50000 Ton/Tons per Year

Contact Now

Detailed Product Description

Name:	Designed Load HL-93 Compact Panel Bridge Steel Truss Bridge	Grade:	Q345B
Place Of Origin:	HUBEI WUHAN	Type:	CB200 Compact Panel Bridge
Processing Service:	Decoiling, Cutting, Punching	Certificate:	ISO9001:2015
Color:	According To Requirement	Structure Type:	Bailey Bridge
Installation:	Engineers Guidance	Supply Ability:	40000 Ton/Tons Per Year
Maintenancerequirement:	Periodic Inspection And Repainting	Tracked Load:	50t
Secondary Steel:	Q235	Construction:	High Prefabrication Accuracy
Deck:	Steel Deck	Corrosionprotection:	Galvanization Or Protective Coating
Payment:	T/T,LC	Support:	Piers
Performance:	Safety, Convenient, Easy To Install Etc.	Dimensions:	7.6m Width
Surface Protection:	Hot-dip Galvanized	Spanlength:	Varies (typically 20m To 200m)
Panel Size:	3048mm*2134mm	Weight:	Light Weight
Maintenance:	Low Maintenance
Highlight:	Prefabricated steel truss bridge with HL93 load , Steel truss bridge with wood deck option , Steel truss bridge for 6-60 meter span

Prefabricated Steel Truss Bridge with Designed Load HL93

This prefabricated steel truss bridge is engineered for spans ranging from 6 to 60 meters and features steel or wood deck options. Designed with load capacity HL93, it incorporates prefabricated construction strategies that enable large spans, reduced construction periods, steadfast erection, and multiple reuses of bridge components.

The HL-93 Compact Panel Steel Truss Bridge offers excellent interchangeability and connection performance. The bridge structure can be customized according to specific span and load requirements, allowing for rapid construction of temporary or semi-permanent bridges.

Surface protection options include paint or hot-dip galvanizing for enhanced durability and longevity.

Technical Specifications

Type	CB100
Designed Span	6-60m
Designed Load	HS25-44, Axle Load 20t, Tracked Load 50t
Panel Dimension	1.448 × 3.048m
Carriageway Width	4.2m / 7.35m
Deck Type	Steel Deck / Wood Deck
