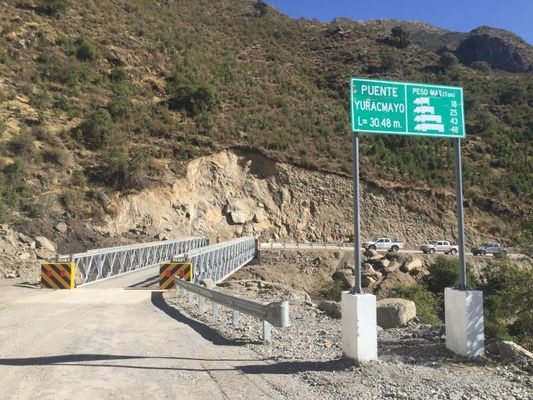

Prefabricated Steel Truss Bridge with Span Range 6 to 60 Meters Designed Load HL93 Featuring Steel or Wood Deck Options for Durable Construction

Large Image : Prefabricated Steel Truss Bridge with Span Range 6 to 60 Meters Designed Load HL93 Featuring Steel or Wood Deck Options for Durable Construction

Product Details:

Place of Origin:	China
Brand Name:	Harzone
Certification:	ISO9001:2015

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiated
Supply Ability:	50000 Ton/Tons per Year

Contact Now

Detailed Product Description

Name:	Designed Load HL-93 Compact Panel Bridge Steel Truss Bridge	Grade:	Q345B
Place Of Origin:	HUBEI WUHAN	Type:	CB200 Compact Panel Bridge
Processing Service:	Decoiling, Cutting, Punching	Certificate:	ISO9001:2015
Color:	According To Requirement	Structure Type:	Bailey Bridge
Installation:	Engineers Guidance	Supply Ability:	40000 Ton/Tons Per Year
Maintenancerequirement:	Periodic Inspection And Repainting	Tracked Load:	50t
Secondary Steel:	Q235	Construction:	High Prefabrication Accuracy
Deck:	Steel Deck	Corrosionprotection:	Galvanization Or Protective Coating
Payment:	T/T,LC	Support:	Abutment , Piers
Performance:	Safety, Convenient, Easy To Install Etc.	Dimensions:	Standard Or Customized
Surface Protection:	Hot-dip Galvanized	Spanlength:	Varies (typically 20m To 200m)
Panel Size:	3048mm*2134mm	Weight:	Light Weight
Maintenance:	Low Maintenance	Standard:	ASTM, BS, GB
Ways Of Supply:	Order	Surface:	Painted
Main Steel:	Q355, Q235,	Spans:	Medium Span
Environmentalresistance:	Weather, Seismic, Wind Load Resistant	Height:	Depends On Truss Design (e.g., 3m To 10m)
Life:	100 Years	Max Span:	45 Meters
Structure:	Steel Truss	Category:	Truss Display
Highlight:	prefabricated steel truss bridge HL93 load , steel truss bridge wood deck option , steel truss bridge span 60 meters

Prefabricated Steel Truss Bridge with Span Range 6 to 60 Meters

Our prefabricated steel truss bridge offers exceptional durability and versatility with span capabilities from 6 to 60 meters. Designed to meet HL93 load standards, this bridge system provides both steel and wood deck options to suit various construction requirements.

The prefabricated design strategy enables large spans with shorter construction periods, ensuring steadfast erection and multiple reuse capabilities of bridge components. The compact panel steel truss bridge features excellent interchangeability and connection performance, allowing for customized design based on specific span and load requirements for rapid construction of temporary or semi-permanent bridges.

Surface protection options include paint or hot-dip galvanized finishes for enhanced longevity and corrosion resistance.

Technical Specifications

Type	CB100
Designed Span	6-60m
Designed Load	HS25-44, Axle Load 20t, Tracked Load 50t
Panel Dimension	1.448 × 3.048m
Carriageway Width	4.2m / 7.35m
Deck Type	Steel Deck / Wood Deck

Key Advantages

Simple structure design with exceptional stability
Extended fatigue life for long-term reliability
Versatile span and loading capacity alternatives
Rapid deployment and construction efficiency
Component reusability for cost-effective operations
