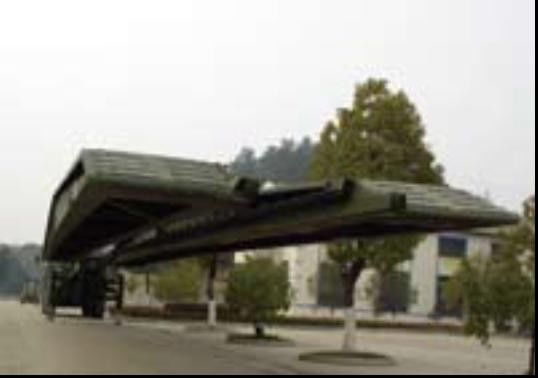

21m Long, 3.3m Width Heavy Mountain Bridge / Emergency Bridge For Erecting Bridge

21m Long, 3.3m Width Heavy Mountain Bridge / Emergency Bridge For Erecting Bridge
21m Long, 3.3m Width Heavy Mountain Bridge / Emergency Bridge For Erecting Bridge 21m Long, 3.3m Width Heavy Mountain Bridge / Emergency Bridge For Erecting Bridge 21m Long, 3.3m Width Heavy Mountain Bridge / Emergency Bridge For Erecting Bridge 21m Long, 3.3m Width Heavy Mountain Bridge / Emergency Bridge For Erecting Bridge 21m Long, 3.3m Width Heavy Mountain Bridge / Emergency Bridge For Erecting Bridge

Large Image :  21m Long, 3.3m Width Heavy Mountain Bridge / Emergency Bridge For Erecting Bridge

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Feature: Reusable Capacity: Heavy Loading Capacity
Status: Sefl Fold And Unfold Material: Steel Bridge
High Light:

Wheel Type Striking Bridge

,

Wheel Bridge



Heavy Mountain Bridge is sort of emergency equipment carried by automobile and accomplishes erection and retrieval by erection vehicle. It is mainly used to erect a bridge with a length of 21m long and a width of 3.3m to ensure all sorts of vehicles with a tracked load of up to 60 tons or an axle load of up to 17 tons to go across small medium rivers and dry gaps rapidly.



Specifications for Heavy Mountain Bridge

Tracked load / axle load

55t / 17t

Outline dimension (L*W*H)

13*3.3*3.6m

Gross weight

32.5t

Bridge weight

10.5t

Bridge length

21m

Negotiating length (on hard banks)

19m

Section length

10.63m

Bridge width (when expanding)

3.3m

Track width

1.15m

Section height

0.95m

End section height

0.35m

Operator

2-3

Erection time

10 min

Max. longitudinal slope / lateral slope

±10%  / ±5%

Allowable bank height difference

5%
