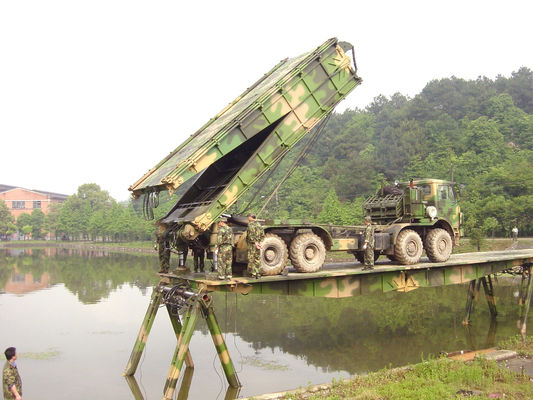

Axle Load 13t Mechanized Bridge Modular Emergency Bridge

Axle Load 13t Mechanized Bridge Modular Emergency Bridge
Axle Load 13t Mechanized Bridge Modular Emergency Bridge

Large Image :  Axle Load 13t Mechanized Bridge Modular Emergency Bridge

Product Details:
Place of Origin: CHINA
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Material: Iron Bridge Status: Sefl Fold
Feature: Reusable Capacity: Axle Load 13t
Product Name: Axle Load 13t Mechanized Bridge Emergency Bridge Type: Modular Emergency Bridge
High Light:

13t Mechanized Bridge

,

Modular Mechanized Bridge

,

13t Modular Emergency Bridge

Axle Load 13t Mechanized Bridge Emergency Bridge

Description:


Axle Load 13t Mechanized Bridge Emergency Bridge is an emergency bridge equipment with bridge trestle, which can accomplish continuous multi-span erection.It's a set of equipment mainly used for bridging small and medium rivers, dry gaps and marshland with a length within 75m and a depth within 5.5m to ensure all sorts of tanks, artilleries and vehicles, and personnel to get across.

The complete set consists of five transport vehicles with bridge spans with a length of 15m. The chassis is type XC2300/8×8 15T class cross-country truck, with advanced engine, gearbox and axles etc.

The trestles are controlled by hydraulic winch; the outriggers ban be adjusted by automatic control technology, with double class hydraulic cylinders. The bridge is erected with shear style erection, and span stretching at mean time to keep safety and stability in erection.



Usage



It is used to ensure all kinds of military vehicles with tracked load up to 60t and wheeled load up to 13t to overcome medium and small rivers, dry ditches and marsh lands.



No Item Data
1 Loading capacity
  Tracked load 60t
Wheeled load 13t
2 Single span length 15m
3 Total length of one whole set 75m
4 Carriage way width 3.8m
5 Adjusting height of trestle
  Max. 5.5m
Min. 3.32m
6 Erection time
  Single span 9~11min
Whole set 55~65min
7 Allowed max water velocity 2m/sec
8 Operators
  single span 7
whole set 13
9 Total weight 30.6t
10 Outline dimension(L×W×H) ≤11800mm*3200mm*3700mm



Main features



Good flexibility: using 8×8 cross country chassis

Continuous erection: bridge length unlimited

Fast erection: 9-11min (single span)

High mechanization level &low labor intensity: remote control

High loading capacity: tracked load 60t, wheeled load 30t

Less operators: 7(single span), 13(one set)



FAQ

1,How about quality control of your company?

Manufacturing process for steel bailey bridge in China,who has engaging in this line for over 50 years with an International Quality System Certification of ISO 9001:2015 and as cooperation partner with the research institutions of the People’s Liberation Army. And our products have been exported to more than 40 countries and regions in Asia,Africa,Latin America and Oceania.



2,Are you a factory or a trade company?

We are a factory with 8 production lines and various machines to fabricate steel bridge parts,pontoon bridges,mechanized bridges and other products.Also, we have get the exporting license to devote ourselves into global market.



3,Where is your loading port?

Shanghai Port,Nanjing Port,Tianjin Port.
