Max. Current Velocity 2m/S Heavy Emergency Bridge Modular Fast Erection

Max. Current Velocity 2m/S Heavy Emergency Bridge Modular Fast Erection
Max. Current Velocity 2m/S Heavy Emergency Bridge Modular Fast Erection

Large Image :  Max. Current Velocity 2m/S Heavy Emergency Bridge Modular Fast Erection

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Material: Steel Bridge Feature: Reusable
Capacity: Heavy Loading Capacity Product Name: Total Weight 30.6t 75m Modular Fast Erection Heavy Mechanized Bridge
Condition: New Warranty: 1 Year
Application: Steel Structure Bridge
High Light:

Heavy Emergency Bridge

,

2m/S Emergency Bridge

,

Emergency Bridge Modular

Max. Current Velocity 2m/S Modular Fast Erection Heavy Mechanized Bridge



Description of Max. Current Velocity 2m/S Modular Fast Erection Heavy Mechanized Bridge:

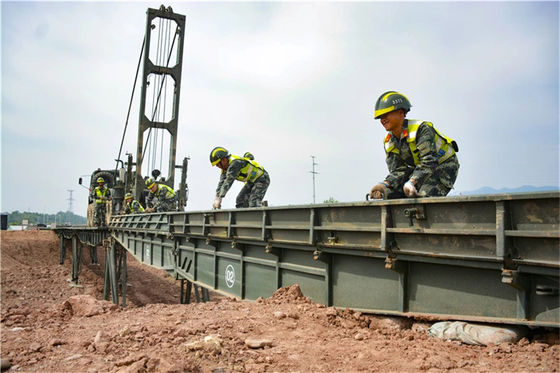

Max. Current Velocity 2m/S Modular Fast Erection Heavy Mechanized Bridge is a set of equipment mainly used for bridging small and medium rivers, dry gaps and marshland with a length within 75m and a depth within 5.5m to ensure all sorts of tanks, artilleries and vehicles, and personnel to get across.



Specification of Max. Current Velocity 2m/S Modular Fast Erection Heavy Mechanized Bridge:
Total weight 30.6t
Folded outline dimension (L*W*H) 10890*3150*3660 mm
Tracked load 60t
Axle load 13t
Roadway width 3.8m
Span length 15m
Max. bridge length 75m
Max. height (from shoes to deck) 5.5m
Erection time for a single span 12 min
Max. current velocity 2m/s
Operator 7 operators for a single span



































Max. Current Velocity 2m/S Modular Fast Erection Heavy Mechanized Bridge  consists of five transport vehicles with bridge spans with a length of 15m. The chassis is type XC2300/8×8 15T class cross-country truck, with advanced engine, gearbox and axles etc. The trestles are controlled by hydraulic winch; the outriggers ban be adjusted by automatic control technology, with double class hydraulic cylinders. The bridge is erected with shear style erection, and span stretching at mean time to keep safety and stability in erection.

Max. Current Velocity 2m/S Heavy Emergency Bridge Modular Fast Erection 0Max. Current Velocity 2m/S Heavy Emergency Bridge Modular Fast Erection 1

FAQ

1,How about quality control of your company?

Manufacturing process for steel bailey bridge in China,who has engaging in this line for over 50 years with an International Quality System Certification of ISO 9001:2015 and as cooperation partner with the research institutions of the People’s Liberation Army. And our products have been exported to more than 40 countries and regions in Asia,Africa,Latin America and Oceania.



2,Are you a factory or a trade company?

We are a factory with 8 production lines and various machines to fabricate steel bridge parts,pontoon bridges,mechanized bridges and other products.Also, we have get the exporting license to devote ourselves into global market.



3,Where is your loading port?

Shanghai Port,Nanjing Port,Tianjin Port.
