All Kinds Of Military Vehicles Modular Mechanized Bridge Overcome Medium And Small Rivers

All Kinds Of Military Vehicles Modular Mechanized Bridge Overcome Medium And Small Rivers
All Kinds Of Military Vehicles Modular Mechanized Bridge Overcome Medium And Small Rivers

Large Image :  All Kinds Of Military Vehicles Modular Mechanized Bridge Overcome Medium And Small Rivers

Product Details:
Place of Origin: CHINA
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Material: Iron Status: Sefl Fold
Feature: Reusable Capacity: Tracked Load 60t
Product Name: Width 3.8m Fast Erection Modular Mechanized Bridge Iron Bridge Type: Emergency Bridge
High Light:

Modular Mechanized Bridge

,

Medium Mechanized Bridge

,

Small Rivers Mechanized Bridge

Ensure All Kinds Of Military Vehicles Overcome Medium And Small Rivers Modular Mechanized Bridge

Ensure All Kinds Of Military Vehicles Overcome Medium And Small Rivers Modular Mechanized Bridge ​ Description:

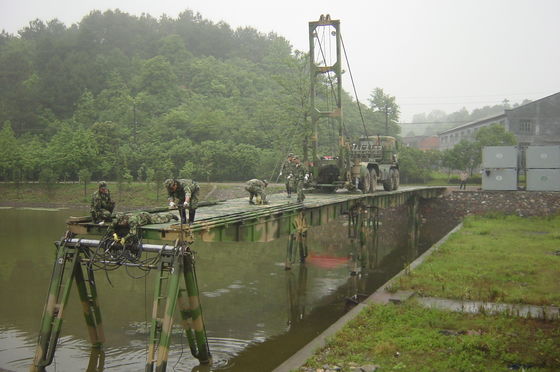

Ensure All Kinds Of Military Vehicles Overcome Medium And Small Rivers Modular Mechanized Bridge is an emergency bridge equipment with bridge trestle, which can accomplish continuous multi-span erection.It's a set of equipment mainly used for bridging small and medium rivers, dry gaps and marshland with a length within 75m and a depth within 5.5m to ensure all sorts of tanks, artilleries and vehicles, and personnel to get across.   The trestles are controlled by hydraulic winch; the outriggers ban be adjusted by automatic control technology, with double class hydraulic cylinders. Ensure All Kinds Of Military Vehicles Overcome Medium And Small Rivers Modular Mechanized Bridge is erected with shear style erection, and span stretching at mean time to keep safety and stability in erection.

The complete set consists of five transport vehicles with bridge spans with a length of 15m. The chassis is type XC2300/8×8 15T class cross-country truck, with advanced engine, gearbox and axles etc.





Ensure All Kinds Of Military Vehicles Overcome Medium And Small Rivers Modular Mechanized Bridge Data:

No Item Data
1 Loading capacity
  Tracked load 60t
Wheeled load 13t
2 Single span length 15m
3 Total length of one whole set 75m
4 Carriage way width 3.8m
5 Adjusting height of trestle
  Max. 5.5m
Min. 3.32m
6 Erection time
  Single span 9~11min
Whole set 55~65min
7 Allowed max water velocity 2m/sec
8 Operators
  single span 7
whole set 13
9 Total weight 30.6t
10 Outline dimension(L×W×H) ≤11800mm*3200mm*3700mm



Ensure All Kinds Of Military Vehicles Overcome Medium And Small Rivers Modular Mechanized Bridge is used to ensure all kinds of military vehicles with tracked load up to 60t and wheeled load up to 13t to overcome medium and small rivers, dry ditches and marsh lands.



Main features of Ensure All Kinds Of Military Vehicles Overcome Medium And Small Rivers Modular Mechanized Bridge ​:



Good flexibility: using 8×8 cross country chassis

Continuous erection: bridge length unlimited

Fast erection: 9-11min (single span)

High mechanization level &low labor intensity: remote control

High loading capacity: tracked load 60t, wheeled load 30t

Less operators: 7(single span), 13(one set)



All Kinds Of Military Vehicles Modular Mechanized Bridge Overcome Medium And Small Rivers 0
