Mechanized Iron Fast Bridge Erection Maximum Transverse Gradient 5%

Mechanized Iron Fast Bridge Erection Maximum Transverse Gradient 5%
Mechanized Iron Fast Bridge Erection Maximum Transverse Gradient 5%

Large Image :  Mechanized Iron Fast Bridge Erection Maximum Transverse Gradient 5%

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Material: Iron Feature: Fast Erection
Capacity: High Loading Capacity Product Name: Erection Maximum Transverse Gradient 5% Mechanized Bridge Fast Bridge
Condition: New Warranty: 1 Year
Application: Emergency Equipment Span: 17、25.5、34、42.5、51m
Standard: AISI GB BS GB/BS Color: Clients' Requirments
High Light:

mechanized fast bridge

,

iron fast bridge

,

fast mechanized bridge

Erection Maximum Transverse Gradient 5% Mechanized Bridge Fast Bridge



Description of Heavy Loading Capacity Less Operators 3-4 Mechanized Bridge Fast Bridge​:


Erection Maximum Transverse Gradient 5% Mechanized Bridge Fast Bridge is a set of mechanized bridge with long single span accepted by vehicle. One complete set of equipment consists of one erection vehicle and six transport vehicles with bridge bays, which can be assembled into an emergency bridge rapidly to ensure all sorts of vehicles to go across quickly.



The whole set of  Erection Maximum Transverse Gradient 5% Mechanized Bridge Fast Bridge is composed of three parts: bridge span, erection vehicle and transportation vehicle.



 Main features of Erection Maximum Transverse Gradient 5% Mechanized Bridge Fast Bridge:

1 Fast erection: 90min (To erect a 51m bridge)

2 Excellent cross country performance: Cross country chassis (8×8 erection vehicle, 6×6 transportation vehicle)

3 Less operators: 3-4(not including drivers)

4 Large single span: max. single span reaches 51m

5 High mechanization level, low labor intensity: using remote control operation

6 Less composition unit: one erection vehicle, six transportation vehicle



Technical parameters of Erection Maximum Transverse Gradient 5% Mechanized Bridge Fast Bridge​:



No Item Data
1 Curb weight of erection vehicle 33t
2 Curb weight of transportation vehicle 21t
3 Dimension of erection vehicle (L×W×H ) 13.6m×3.2m×3.47m
4 Dimension of transportation vehicle (L×W×H ) 12m×3.4m×3.5m
5 Load capacity
  Tracked load 60T
Wheeled load 13T
6 Life time 10000 times
7 Erection length 17m,25.5m,34m,42.5m,51m
8 Erection width 4m
9 Negotiating depth: ±3m
10 Erection maximum longitudinal gradient 10%
11 Erection maximum transverse gradient 5%
12 Erection time (complete bridge) 90min
13 Retrieval time (complete bridge) 90min
14 Operator(not including driver) 3~4
15 Ambient temperature -41℃~+50℃



Erection Maximum Transverse Gradient 5% Mechanized Bridge Fast Bridge possesses the feature of decent flexibility, large single span, humble structure, quick erection, high mechanization and less manpower. Moreover, it has the benefits of suitable transportation and favorable adaptability of bank.

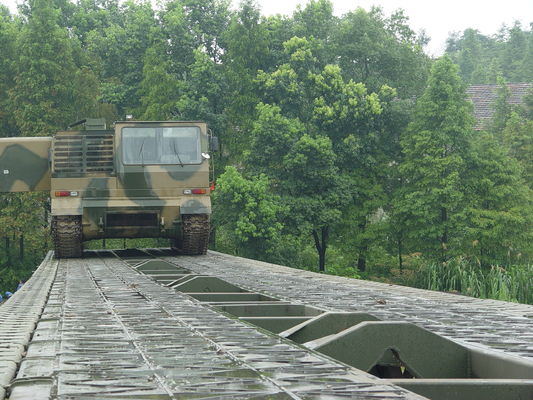

Mechanized Iron Fast Bridge Erection Maximum Transverse Gradient 5% 0Mechanized Iron Fast Bridge Erection Maximum Transverse Gradient 5% 1

China Harzone dedicates itself to the following fields:

Design and manufacturing of military bridges and emergency rescue equipment

Design,manufacturing and installation of various kinds of steel bridges and steel structures

Research and re-fitting of special-purpose vehicles and equipment

Engineering contracting

Import and Export trading business



Harzone products have been exported to more than 40 countries and regions around the world and own a good reputation from international client.Moreover,China Harzone has been listed in the state emergency purchasing system and also the largest qualified rescue machinery supplier of the United Nations Emergency Procurement.
