Description of Design Loading Tracked Loading 60t Mechanized Bridge ​:

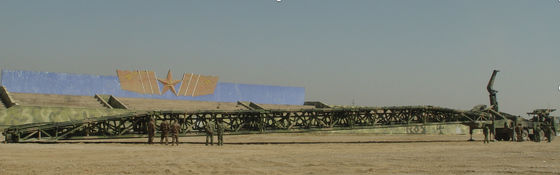

Design Loading Tracked Loading 60t Large Single Span Mechanized Bridge is a set of mechanized bridge with long single span accepted by vehicle. One complete set of equipment consists of one erection vehicle and six transport vehicles with bridge bays, which can be assembled into an emergency bridge rapidly to ensure all sorts of vehicles to go across quickly.

Technical data of Design Loading Tracked Loading 60t Large Single Span Mechanized Bridge:

Curb weight of erection vehicle (including 3 men): 33t

Curb weight of transportation vehicle: 21t

Dimensions of erection vehicle (length×width×height):13600mm×3200mm×3470mm

Dimensions of transportation vehicle (length×width×height):12000mm×3400mm×3500mm

Design loading: tracked loading 60t

Wheeled (load on axle) 13t

Max. tracked loading: ≤ 15km/h

Max. wheeled loading: ≤ 30km/h

Design using longevity (loading across) 10000 times

Erection length : 17m,25.5m,34 m,42.5 m,51 m

Erection width: 4m

Negotiating depth: ±3m

Erection maximum longitudinal gradient: 10 %

Erection maximum transverse gradient : 5%

Erection time (complete bridge) 90min

Retrieval time (complete bridge) 90min

Operator: 3~4 men (not including drivers of transportation vehicles)

Ambient temperature: -41℃~＋50℃

Max. speed: 80km/h

Min. turning dia: 24m

Min. ground clearance: 300mm

Max. fording depth: 700mm

Max. gradeability: 60%

Max. continued mileage: 650km

 Main features of Design Loading Tracked Loading 60t Large Single Span Mechanized Bridge:

1Excellent cross country performance: Cross country chassis (8×8 erection vehicle, 6×6 transportation vehicle)

2 Large single span: max. single span reaches 51m

3 Less composition unit: one erection vehicle, six transportation vehicle

4 Fast erection: 90min (To erect a 51m bridge)

5 High mechanization level, low labor intensity: using remote control operation

6 Less operators: 3-4(not including drivers)

Design Loading Tracked Loading 60t Large Single Span Mechanized Bridge possesses the feature of decent flexibility, large single span, humble structure, quick erection, high mechanization and less manpower. Moreover, it has the benefits of suitable transportation and favorable adaptability of bank.
