Emergency Rescue Temp Bridge Negotiating Depth ±3m

Emergency Rescure Negotiating Depth ±3m Mechanized Bridge

Description of Emergency Rescure Negotiating Depth ±3m Mechanized Bridge :

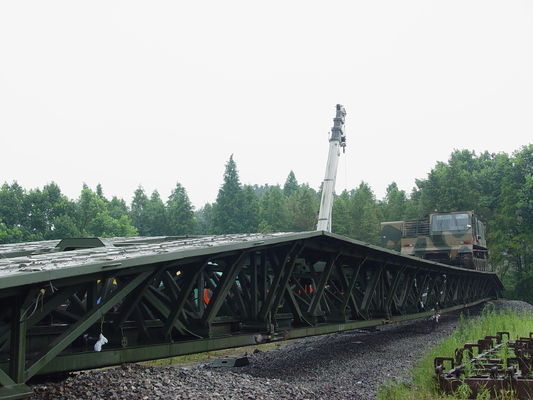

Emergency Rescure Negotiating Depth ±3m Mechanized Bridge is a set of temporary large span bridge equipment carried by erection vehicle, accomplishing the erection and retrieval operation by the erection vehicle,which can be assembled into an emergency bridge rapidly to ensure all sorts of vehicles to go across quickly.

Emergency Rescure Negotiating Depth ±3m Mechanized Bridge is used to fast erect a temporary bridge of 17-51m, 4m wide to ensure all sorts of vehicles with the tracked load of up to 60t or an axle load of up to 13t to go across obstacles including rivers and dry ditches.

Technical data of Emergency Rescure Negotiating Depth ±3m Mechanized Bridge:

Curb weight of erection vehicle (including 3 men): 33t

Curb weight of transportation vehicle: 21t

Dimensions of erection vehicle (length×width×height):13600mm×3200mm×3470mm

Dimensions of transportation vehicle (length×width×height):12000mm×3400mm×3500mm

Design loading: tracked loading 60t

Wheeled (load on axle) 13t

Max. tracked loading: ≤ 15km/h

Max. wheeled loading: ≤ 30km/h

Design using longevity (loading across) 10000 times

Erection length : 17m,25.5m,34 m,42.5 m,51 m

Erection width: 4m

Negotiating depth: ±3m

Erection maximum longitudinal gradient: 10 %

Erection maximum transverse gradient : 5%

Erection time (complete bridge) 90min

Retrieval time (complete bridge) 90min

Operator: 3~4 men (not including drivers of transportation vehicles)

Ambient temperature: -41℃~＋50℃

Max. speed: 80km/h

Min. turning dia: 24m

Min. ground clearance: 300mm

Max. fording depth: 700mm

Max. gradeability: 60%

Max. continued mileage: 650km

Main features of Emergency Rescure Negotiating Depth ±3m Mechanized Bridge:

1Excellent cross country performance: Cross country chassis (8×8 erection vehicle, 6×6 transportation vehicle)

2 Large single span: max. single span reaches 51m

3 Less composition unit: one erection vehicle, six transportation vehicle

4 Fast erection: 90min (To erect a 51m bridge)

5 High mechanization level, low labor intensity: using remote control operation

6 Less operators: 3-4(not including drivers)

Emergency Rescure Negotiating Depth ±3m Mechanized Bridge is used to fast erect a temporary bridge of 17-51m, 4m wide to ensure all sorts of vehicles with the tracked load of up to 60t or an axle load of up to 13t to go across obstacles including rivers and dry ditches.
