21m Long, 3.3m Wide Temporary Military Mobile Bridge

21m Long, 3.3m Wide Temporary Military Mobile Bridge
21m Long, 3.3m Wide Temporary Military Mobile Bridge

Large Image :  21m Long, 3.3m Wide Temporary Military Mobile Bridge

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Material: Steel\iron Bridge Capacity: Tracked Load 60t
Structure: Simple Structure Name: Military Bridge
Bridge Length: 21-24M Product Name: 21m Long, 3.3m Wide Temporary Military Mobile Bridge
Certification: ISO Type: Heavy
Color: Clients' Requirments

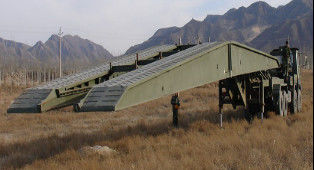

21m Long, 3.3m Wide Temporary Military Mobile Bridge

1.  Introduction of 21m Long, 3.3m Wide Temporary Military Mobile Bridge​

A set of 21m Long, 3.3m Wide Temporary Military Mobile Bridge carried by vehicle, accomplishing bridge erection and retrieval by itself.



2. Usage of 21m Long, 3.3m Wide Temporary Military Mobile Bridge

21m Long, 3.3m Wide Temporary Military Mobile Bridge main used as 3.3m wide,24m or 21m long temporary channels for overcoming small river, dry gap and craters, ensure all sorts of vehicles with a tracked load of up to 60 tons or an axle load of up to 13 tons to go across.



3. Basic composition of 21m Long, 3.3m Wide Temporary Military Mobile Bridge

21m Long, 3.3m Wide Temporary Military Mobile Bridge is mainly composed of auxiliary, span and chassis equipment. The brdige is folded on the chassis when transportation and erected by chassis. The auxiliary equipment is used to help with erecting and fixing.



4. Main Features of 21m Long, 3.3m Wide Temporary Military Mobile Bridge

No Item Data
1 Total weight ≤32t
2 Outline dimension (L×W×H) 13m×3.32m×3.6m
3 Load capacity
  Tracked Load 60t
  Wheeled Load 17t
4 Span weight 10.5t
5 Bridge length 21m
6 Erection time 10min
7 Retrieval time 10min
8 Max. longitudinal slope ±10%
9 Max. lateral slope ±5%
10 Allowed bank differences ±2.0m
11 Operators 2~3
12 Max. speed 85 km/h
