Emergency Bridge / Light Mountain Bridge / Mechanized Bridge For Plateau Vehicles

Emergency Bridge / Light Mountain Bridge / Mechanized Bridge For Plateau Vehicles
Emergency Bridge / Light Mountain Bridge / Mechanized Bridge For Plateau Vehicles Emergency Bridge / Light Mountain Bridge / Mechanized Bridge For Plateau Vehicles Emergency Bridge / Light Mountain Bridge / Mechanized Bridge For Plateau Vehicles Emergency Bridge / Light Mountain Bridge / Mechanized Bridge For Plateau Vehicles

Large Image :  Emergency Bridge / Light Mountain Bridge / Mechanized Bridge For Plateau Vehicles

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Material: Steel Bridge Feature: Reusable
Capacity: Heavy Loading Capacity Structure: Simple
Status: Sefl Fold And Unfold
High Light:

military Bridge

,

Wheel Type Striking Bridge


Emergency Bridge / Light Mountain Bridge / Mechanized Bridge For Plateau Vehicles

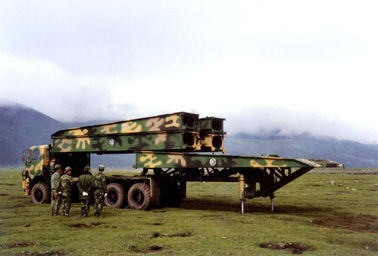

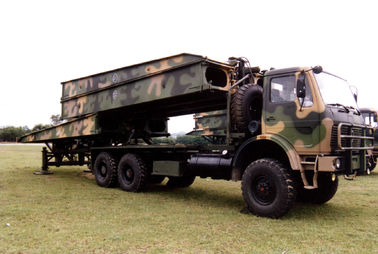

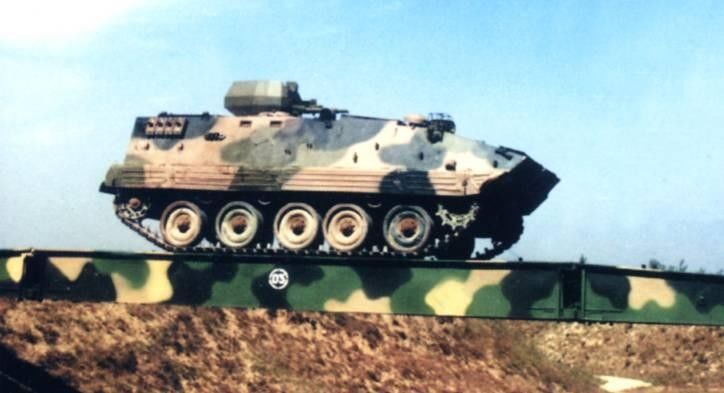

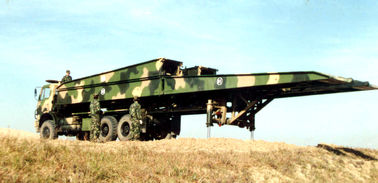

Light Mountain Bridge is mainly used to erect an emergency bridge for all sorts of artilleries and vehicles to get across streams, trenches, ditches, craters or other obstacles not wider than 20.5m.


It can be used in plateau (with boost engine and oil adapted), mountain area, plain and paddy field area.



Specification for Light Mountain Bridge



Folded outline dimension (L*W*H)

10960*3200*3640mm

Gross weight

21.8t

Tracked load / Axle load

22t / 10t

Bridge weight

6.5t

Bridge length

22.5m

Negotiating width (on hard banks)

20.5m

Section length

7.5m

Roadway width

3.2m

Track girder width

1.16m

Erection / Retrieval time

10/10 mim

Max. twist in erection

±5%

Allowable bank height difference

2.0m

Operator

3 operators
